Indicator Assembly

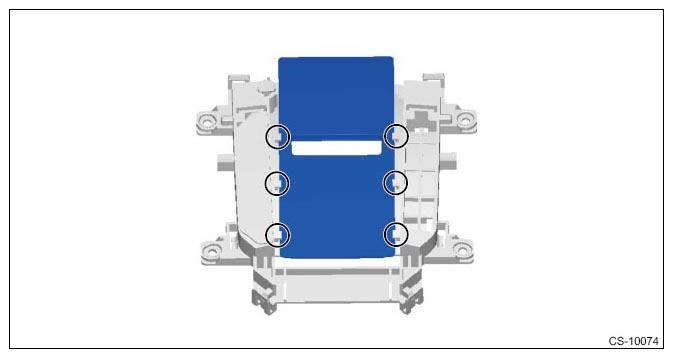

  1. Install the blind A to the housing. (Model with gate shifter)
    NOTE: The blind A should be installed so that it is securely caught inside the tab of the housing.
    G11255338Courtesy of SUBARU OF AMERICA, INC.
  2. Install the blind B behind the blind A. (Model with gate shifter)
  3. Install the boot assembly. (Model with boot shifter)
  4. Install the housing to the indicator assembly. (Model with gate shifter)
  5. Install the harness connector to the front console cover, and install the indicator assembly.
