Keyless Access Control Module: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Release the lock, tilt the steering column to the lowest end and fully extend the column by the telescopic system.
  3. Remove the grille ventilation assembly center LH. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE .
  4. Remove the combination meter assembly. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .

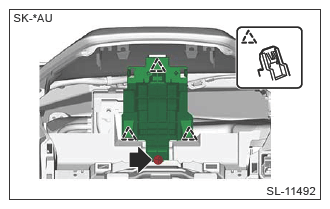

  5. Remove the screw and remove the reinforcement meter.
    G13226944Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the keyless access control module.
    CAUTION: Be careful to keep water and other foreign materials away from the keyless access control module terminals.

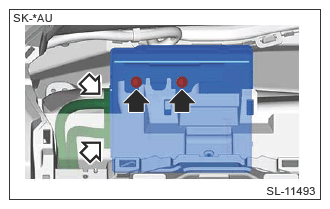

    1. Disconnect the connector.
    2. Remove the bolts and remove the keyless access control module.
G13226945Courtesy of SUBARU OF AMERICA, INC.
