Keyless Entry Control Module: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the rear seat cushion assembly. Ref. to SEATS>REAR SEAT>REMOVAL .
  3. Remove the trim panel assembly apron LH and the trim panel assembly D pillar LH. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .
  4. Remove the keyless entry control module.

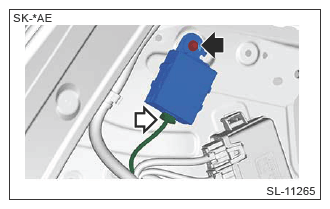

    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.
G13226926Courtesy of SUBARU OF AMERICA, INC.
