Power Seat And Remote Control Mirror Control Module

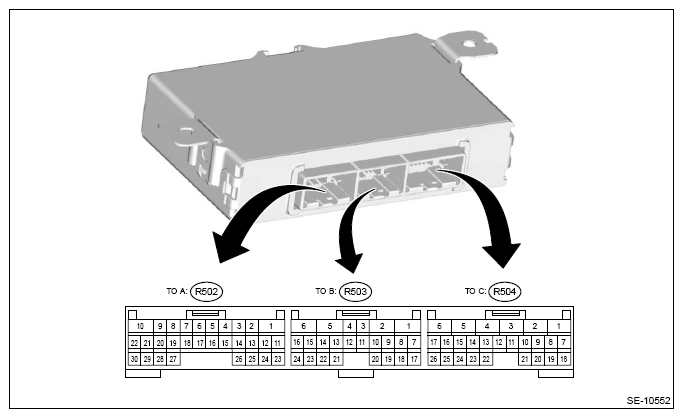

G13229157Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Contents Measuring condition Standard Note
(R502) No. 1 ←→ Chassis ground Mirror load drive power supply Always 9.0 - 16 V
(R502) No. 2 ←→ Chassis ground ECM power supply Always 9.0 - 16 V
(R502) No. 3 - - - -
(R502) No. 4 Remote control mirror SW power supply When the mirror surface is operated 9.0 - 16 V
(R502) No. 5 Remote control mirror SW MAL input (L side) When the mirror surface is operated (up) 10 kΩ or more Only when the left mirror is operated
When the mirror surface is operated (down) 10 kΩ or more Only when the left mirror is operated
When the mirror surface is operated (right) 1.5 V or less Only when the left mirror is operated
When the mirror surface is operated (left) 3.7 V or more Only when the left mirror is operated
(R502) No. 6 Remote control mirror SW MCL input (L side) When the mirror surface is operated (up) 3.7 V or more Common to both the right and left mirror operation
When the mirror surface is operated (down) 1.5 V or less Common to both the right and left mirror operation
When the mirror surface is operated (right) 3.7 V or more Common to both the right and left mirror operation
When the mirror surface is operated (left) 1.5 V or less Common to both the right and left mirror operation
(R502) No. 7 -  - - -
(R502) No. 8 ←→ Chassis ground Ignition power supply IG ON 9.0 - 16 V -
(R502) No. 9 ←→ Chassis ground ACC power supply ACC ON 9.0 - 16 V -
(R502) No. 10 ←→ Chassis ground ECM GND Always 0 V -
(R502) No. 11 - - - -
(R502) No. 12 - - - -
(R502) No. 13 - - - -
(R502) No. 14 Remote control mirror SW MAR input (R side) When the mirror surface is operated (up) 10 kΩ or more Only when the right mirror is operated
When the mirror surface is operated (down) 10 kΩ or more Only when the right mirror is operated
When the mirror surface is operated (right) 1.5 V or less Only when the right mirror is operated
When the mirror surface is operated (left) 3.7 V or more Only when the right mirror is operated
(R502) No. 15 Remote control mirror SW MBR input (R side) When the mirror surface is operated (up) 10 kΩ or more Only when the right mirror is operated
When the mirror surface is operated (down) 10 kΩ or more Only when the right mirror is operated
When the mirror surface is operated (right) 1.5 V or less Only when the right mirror is operated
When the mirror surface is operated (left) 3.7 V or more Only when the right mirror is operated
(R502) No. 16 Remote control mirror SW MBL input (L side) When the mirror surface is operated (up) 1.5 V or less Only when the left mirror is operated
When the mirror surface is operated (down) 3.7 V or more Only when the left mirror is operated
When the mirror surface is operated (right) 10 kΩ or more Only when the left mirror is operated
When the mirror surface is operated (left) 10 kΩ or more Only when the left mirror is operated
(R502) No. 17 - - - -
(R502) No. 18 LIN communication - Cannot be measured -
(R502) No. 19 - - - -
(R502) No. 20 - - - -
(R502) No. 21 - - - -
(R502) No. 22 - - - -
(R502) No. 23 - - - -
(R502) No. 24 - - - -
(R502) No. 25 - - - -
(R502) No. 26 Chassis ground Mirror SW GND Always 10 kΩ or more
(R502) No. 27 - - - -
(R502) No. 28 Memory 2 Switch ON 1 V or less -
(R502) No. 29 Memory 1 Switch ON 1 V or less -
(R502) No. 30 Memory set Switch ON 1 V or less -
(R503) No. 1 Tilt motor (+) When the motor is operated 9.0 - 16 V -
(R503) No. 2 Tilt motor (-) When the motor is operated 9.0 - 16 V -
(R503) No. 3 L side mirror memory sensor input - (up/down) Always 0 - 5.0 V Changes when the left side mirror surface is operated in the up/down direction Up direction: 0 V - Down direction: 5.0 V
(R503) No. 4 L side mirror memory sensor input - (left/right) Always 0 - 5.0 V Changes when the left side mirror surface is operated in the left/right direction Right direction (inward): 0 V -Left direction (outward): 5.0 V
(R503) No. 5 Reclining motor (+) When the motor is operated 9.0 - 16 V -
(R503) No. 6 Reclining motor (-) When the motor is operated 9.0 - 16 V -
(R503) No. 7 L side mirror surface output (+) When the mirror surface is operated (up, right) (+B voltage) - 1.2 V or more -
When the mirror surface is operated (down, left) 0.7 V or less -
(R503) No. 8 L side mirror surface output (up/down) When the mirror surface is operated (up) 0.7 V or less -
When the mirror surface is operated (down) (+B voltage) - 1.2 V or more -
(R503) No. 9 L side mirror surface output (left/right) When the mirror surface is operated (right) 0.7 V or less -
When the mirror surface is operated (left) (+B voltage) - 1.2 V or more -
(R503) No. 10 L side mirror memory sensor power supply Always 5.0 V -
(R503) No. 11 R side mirror memory sensor input (up/down) Always 0 - 5.0 V Changes when the right side mirror surface is operated in the up/down direction Up direction: 0 V - Down direction: 5.0 V
(R503) No. 12 R side mirror memory sensor input (left/right) Always 0 - 5.0 V Changes when the right side mirror surface is operated in the left/right direction Right direction (outward): 5.0 V - Left direction (inward): 0 V
(R503) No. 13 L side mirror memory sensor GND Always 1 Q or less -
(R503) No. 14 - - - -
(R503) No. 15 - - - -
(R503) No. 16 - - - -
(R503) No. 17 R side mirror surface motor output (left/right) When the mirror surface is operated (right) (+B voltage) - 1.2 V or more -
When the mirror surface is operated (left) (+B voltage) - 1.2 V or more -
(R503) No. 18 R side mirror surface motor output (up/down) When the mirror surface is operated (up) 0.7 V or less -
When the mirror surface is operated (down) (+B voltage) - 1.2 V or more -
(R503) No. 19 R side mirror surface motor output (+) When the mirror surface is operated (up, right) (+B voltage) - 1.2 V or more -
When the mirror surface is operated (down, left) 0.7 V or less -
(R503) No. 20 R side mirror memory sensor power supply Always 5.0 V -
(R503) No. 21 R side mirror memory sensor GND Always 1 Ω or less -
(R503) No. 22 - - - -
(R503) No. 23 - - - -
(R503) No. 24 - - - -
(R504) No. 1 Seat motor drive power supply Always 9.0 - 16 V -
(R504) No. 2 ECM GND Always 1 Ω or less -
(R504) No. 3 Slide motor (+) When the motor is operated 9.0 - 16 V -
(R504) No. 4 Slide motor (-) When the motor is operated 9.0 - 16 V -
(R504) No. 5 Lifter motor (+) When the motor is operated 9.0 - 16 V -
(R504) No. 6 Lifter motor (-) When the motor is operated 9.0 - 16 V -
(R504) No. 7 Slide switch (+) Switch ON 1.5 V or less -
(R504) No. 8 Tilt switch (+) Switch ON 1.5 V or less -
(R504) No. 9 Reclining switch Switch ON 1.5 V or less -
(R504) No. 10 Lifter switch (+) Switch ON 1.5 V or less -
(R504) No. 11
(R504) No. 12 Seat pulse sensor GND Always 1 Ω or less -
(R504) No. 13 - - - -
(R504) No. 14 - - - -
(R504) No. 15 Tilt pulse When the motor is operated Pulse input -
(R504) No. 16 - - - -
(R504) No. 17 Lifter pulse When the motor is operated Pulse input -
(R504) No. 18 Slide switch (-) Switch ON 1.5 V or less -
(R504) No. 19 Tilt switch (-) Switch ON 1.5 V or less -
(R504) No. 20 Reclining switch Switch ON 1.5 V or less -
(R504) No. 21 Lifter switch (-) Switch ON 1.5 V or less -
(R504) No. 22 Seat motor pulse sensor power supply Always 9.0 - 16 V
(R504) No. 23 - - - -
(R504) No. 24 Reclining pulse When the motor is operated Pulse input -
(R504) No. 25 - - - -
(R504) No. 26 Slide pulse When the motor is operated Pulse input -
