Rear Power Window Sub-Switch (With Telematics)

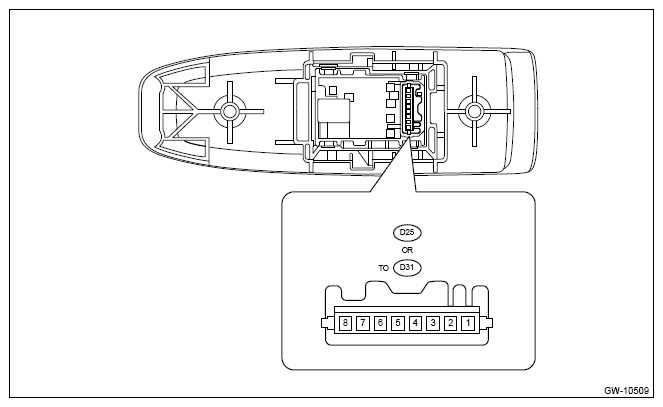

G13229185Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Contents Measuring condition Standard
(D25) or (D31) No. 1 - - -
(D25) or (D31) No. 2 ↔ Chassis ground Power window switch GND Always Less than 1 Ω
(D25) or (D31) No. 3 - - -
(D25) or (D31) No. 4 - - -
(D25) or (D31) No. 5 Power window switch DOWN - -
(D25) or (D31) No. 6 Power window switch UP - -
(D25) or (D31) No. 7 Power window switch LED - -
(D25) or (D31) No. 8 - - -
