Data Monitor: List
- Power Window (Switch), Power Window (Driver), Power Window (Passenger), Power Window (Rear Right) and Power Window (Rear Left)
| Display | Contents | Standard | Note |
|---|---|---|---|
| Power supply voltage | Power supply voltage | 0 - 20.95 V | - |
| Courtesy Switch | Courtesy switch status | Close Open |
- |
| One's Seat Switch | Status of switch at passenger's own seat | OFF DOWN UP UP/DOWN AUTO AUTO DOWN AUTO UP UP/DOWN/AUTO |
- |
| Remote switch | Remote switch status | OFF DOWN UP UP/DOWN AUTO AUTO DOWN AUTO UP UP/DOWN/AUTO |
- |
| Window Lock Switch Signal | Window lock switch status | Unlock Lock |
- |
| Remote Control Key Signal | Remote control key signal | OFF DOWN UP |
- |
| Operation Enable Signal | Operation permission signal | OFF ON |
- |
| Open Position Pulse Count | Full open position pulse count | -32767 - 32767 edge | - |
| Current Position Pulse Count | Current position pulse count | -32767 - 32767 edge | - |
| Motor Control Mode | Motor control status | Stop One's Seat Manual Down One's Seat Manual Up One's Seat Auto Down One's Seat Auto Up Remote Manual Down Remote Manual Up Remote Auto Down Remote Auto Up Remote Key Interlocking Down Remote Key Interlocking Up Reversal Down Active Test Down Active Test Up |
- |
| ECU Control Mode | ECM control status | Uninitialized 1 No_definition Uninitialized 2 Initialized |
- |
| With/Without Forget Closing Window | History wherein window position is within a sensing area when key off timer is prohibited | OFF ON |
- |
| Record Forget Closing Window Latest | Number of times key off timer has been prohibited since key off timer prohibition was detected most recently when the window's position is not in the full close state | 0 - 255 times | - |
| Record Forget Closing Window 1 | Number of times key off timer has been prohibited since key off timer prohibition was detected second last time when the window's position is not in the full close state | 0 - 255 times | - |
| Record Forget Closing Window 2 | Number of times key off timer has been prohibited since key off timer prohibition was detected the third last time when the window's position is not in the full close state | 0 - 255 times | - |
| Record Forget Closing Window 3 | Number of times key off timer has been prohibited since key off timer prohibition was detected the fourth last time when the window's position is not in the full close state | 0 - 255 times | - |
| Window Position Status | Window position information | Indefinite Full Open Full Close Other |
- |
| Reason Down Glass Latest | Latest DOWN factor information record (Auto, Reverse, etc.) | Default One's Seat Manual Down One's Seat Auto Down Remote Manual Down Remote Auto Down Remote Key Interlocking Down Reversal Down Active Test Down |
- |
| Reason Down Glass 1 | Second latest DOWN factor information record (Auto, Reverse, etc.) | Default One's Seat Manual Down One's Seat Auto Down Remote Manual Down Remote Auto Down Remote Key Interlocking Down Reversal Down Active Test Down |
- |
| Position when Reversed Glass Latest | Window position of the latest reverse operation | No Reverse Area 5 Area 4 Area 3 Area 2 Area 1 |

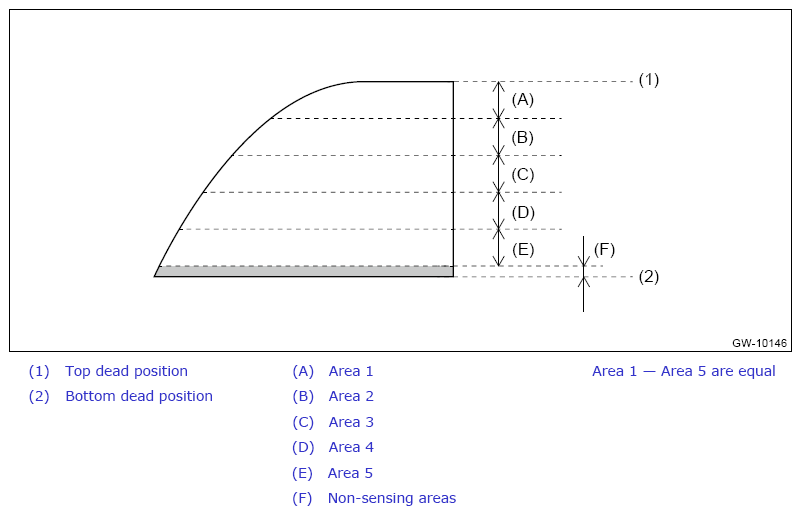

Note 1 |
| Reverse Parameter Mask Latest | Reverse parameters 1 of the latest reverse operation | First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval |
- |
| Reverse Parameter Speed Latest | Reverse parameters 2 of the latest reverse operation | Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h | - |
| Position when Reversed Glass 1 | Window position of the second latest reverse operation | No Reverse Area 5 Area 4 Area 3 Area 2 Area 1 |
Note 1 |
| Reverse Parameter Mask 1 |
Reverse parameters 1 of the second latest reverse operation | First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval | - |
| Reverse Parameter Speed 1 | Reverse parameters 2 of the second latest reverse operation | Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h | - |
| Position when Reversed Glass 2 | Window position of the second latest reverse operation | No Reverse Area 5 Area 4 Area 3 Area 2 Area 1 |
Note 1 |
| Reverse Parameter Mask 2 | Reverse parameters 1 of the second latest reverse operation | First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval | - |
| Reverse Parameter Speed 2 | Reverse parameters 2 of the second latest reverse operation | Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h | - |
| Position when Reversed Glass 3 | Window position of the second latest reverse operation | No Reverse Area 5 Area 4 Area 3 Area 2 Area 1 |
Note 1 |
| Reverse Parameter Mask 3 | Reverse parameters 1 of the second latest reverse operation | First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval | - |
| Reverse Parameter Speed 3 | Reverse parameters 2 of the second latest reverse operation | Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h | - |
| Position when Stop Glass Latest | Window position of the latest window stop operation due to drawing foreign matters | No Reverse Area 5 Area 4 Area 3 Area 2 Area 1 |

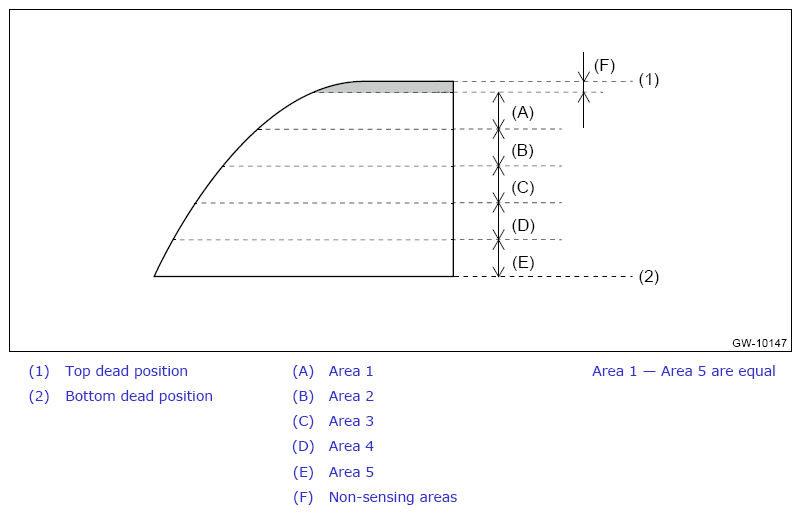

Note 2 |
| Stop Parameter Mask Latest | Parameters 1 of the latest window stop operation due to drawing foreign matters | First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval | - |
| Stop Parameter Speed Latest | Parameters 2 of the latest window stop operation due to drawing foreign matters | Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h | - |
| Position when Stop Glass 1 | Window position of the second latest window stop operation due to drawing foreign matters | No Reverse Area 5 Area 4 Area 3 Area 2 Area 1 |
Note 2 |
| Stop Parameter Mask 1 | Parameters 1 of the second latest window stop operation due to drawing foreign matters | First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval | - |
| Stop Parameter Speed 1 | Parameters 2 of the second latest window stop operation due to drawing foreign matters | Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h | - |
| Position when Stop Glass 2 | Window position of the third latest window stop operation due to drawing foreign matters | No Reverse Area 5 Area 4 Area 3 Area 2 Area 1 |
Note 2 |
| Stop Parameter Mask 2 | Parameters 1 of the third latest window stop operation due to drawing foreign matters | First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval | - |
| Stop Parameter Speed 2 | Parameters 2 of the third latest window stop operation due to drawing foreign matters | Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h | - |
| Position when Stop Glass 3 | Window position of the fourth latest window stop operation due to drawing foreign matters | No Reverse Area 5 Area 4 Area 3 Area 2 Area 1 |
Note 2 |
| Stop Parameter Mask 3 | Parameters 1 of the fourth latest window stop operation due to drawing foreign matters | First Motion Mask within Two of the Interval First Motion Mask without Two of the Interval | - |
| Stop Parameter Speed 3 | Parameters 3 of the third latest window stop operation due to drawing foreign matters | Less than Vehicle Speed 5km/h More than Vehicle Speed 5km/h | - |
NOTE:
- Power Window (Switch)
Display Contents Standard Note Drivers seat AUTO SW state Driver's side AUTO SW status ON
OFF- Drivers seat AUTO SW Present ON trouble Driver's side AUTO SW current ON malfunction Yes
No detection- Passenger seat AUTO SW state Passenger's side AUTO SW status ON
OFF- Passenger seat AUTO SW Present ON trouble Passenger's side AUTO SW current ON malfunction Yes
No detectionPassenger seat MANUAL UP SW state Passenger's side MANUAL UP SW status ON
OFF- Passenger seat MANUAL UP SW Present ON trouble Passenger's side MANUAL UP SW current ON malfunction Yes
No detection- Passenger seat MANUAL DOWN SW state Passenger's side MANUAL DOWN SW status ON
OFF- Passenger seat MANUAL DOWN SW Present ON trouble Passenger's side MANUAL DOWN current ON malfunction Yes
No detection- Right 2nd Seat Manual Up SW State Rear right seat MANUAL UP SW status ON
OFF- Right 2nd Seat Manual Up SW Present ON Trouble Rear right seat MANUAL UP SW current ON malfunction Yes
No detection- Right 2nd Seat Manual Down SW State Rear right seat MANUAL DOWN SW status ON
OFF- Right 2nd Seat Manual Down SW Present ON Trouble Rear right seat MANUAL DOWN current ON malfunction Yes
No detection- Left 2nd Seat Manual Up SW State Rear left seat MANUAL UP SW status ON
OFF- Left 2nd Seat Manual Up SW Present ON Trouble Rear left seat MANUAL UP SW current ON malfunction Yes
No detection- Left 2nd Seat Manual Down SW State Rear left seat MANUAL DOWN SW status ON
OFF- Left 2nd Seat Manual Down SW Present ON Trouble Rear left seat MANUAL DOWN current ON malfunction Yes
No detection- Window Lock Switch State Window lock switch status ON
OFF-
