AVH On Indicator Light Come On

Detecting condition:

• Defective combination meter
• Defective CAN communication
• Defective AVH switch

Trouble symptom:

When the ignition switch is turned to ON, the AVH ON indicator light illuminates with the AVH switch not operated.

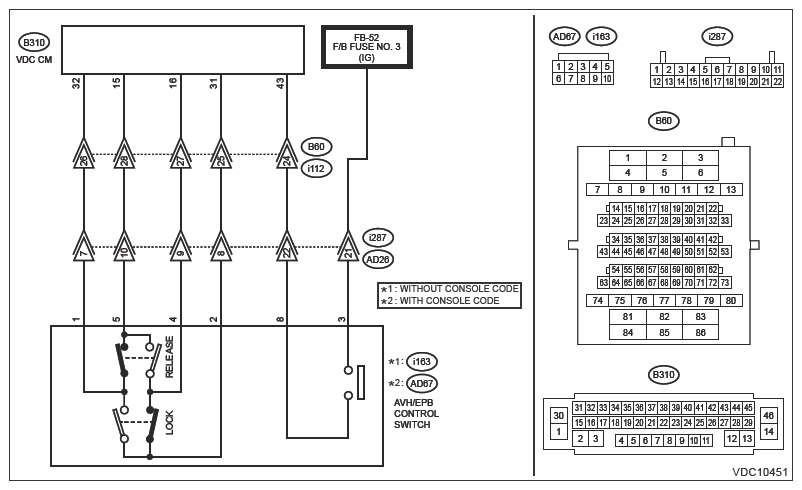

Wiring diagram:

Parking brake/brake fluid level warning light system Ref. to WIRING SYSTEM>PARKING BRAKE/BRAKE FLUID LEVEL WARNING LIGHT SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

1. READ DTC  .

   Read the DTC using Subaru Select Monitor. Ref. to BRAKE CONTROL (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is DTC displayed?

   Yes  : Perform the diagnosis according to DTC. Ref. to BRAKE CONTROL (DIAGNOSTICS)>Diagnostic Trouble Code (DTC)>LIST .

   No  : Go to  2 .

2. CHECK LAN SYSTEM  .

   Check the LAN system. Ref. to LAN SYSTEM (DIAGNOSTICS)>BASIC DIAGNOSTIC PROCEDURE .

   Is the check result OK?

   Yes  : Go to  3 .

   No  : Perform the diagnosis for LAN system.

3. CHECK POWER SUPPLY OF AVH SWITCH  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the connector from the AVH switch.
   3. Turn the ignition switch to ON.
   4. Measure the voltage between the AVH switch connector and chassis ground.

      Connector and terminal

      WITHOUT CONSOLE CODE

      (i163) No. 3 (+) - Chassis ground (-):

      WITH CONSOLE CODE

      (AD67) No. 3 (+) - Chassis ground (-):

   Is the voltage 10 - 15 V?

   Yes  : Go to  4 .

   No  : Repair the power supply circuit of AVH switch.

4. CHECK HARNESS (CHECK FOR OPEN CIRCUIT)  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the connector from the VDCCM&H/U.
   3. Measure the resistance between VDCCM&H/U and AVH switch connector.

      Connector and terminal

      WITHOUT CONSOLE CODE

      (i163) No. 8 - (B310) No. 43:

      WITH CONSOLE CODE

      (AD67) No. 8 - (B310) No. 43:

   Is the resistance less than 1 Ω?

   Yes  : Go to  5 .

   No  : Repair harness and connector between VDCCM&H/U and AVH switch connector.

5. CHECK HARNESS (CHECK FOR GROUND SHORT CIRCUIT)  .

   Measure the resistance between AVH switch connector and chassis ground.

   Connector and terminal

   WITHOUT CONSOLE CODE

   (i163) No. 8 - Chassis ground:

   WITH CONSOLE CODE

   (AD67) No. 8 - Chassis ground:

   Is the resistance 1 MΩ or more?

   Yes  : Go to  6 .

   No  : Repair ground short of harness between VDCCM&H/U and AVH switch connector.

6. CHECK HARNESS (CHECK FOR SHORT CIRCUIT TO POWER SUPPLY)  .
   1. Turn the ignition switch to ON.
   2. Measure the voltage between the AVH switch connector and chassis ground.

      Connector and terminal

      WITHOUT CONSOLE CODE

      (i163) No. 8 (+) - Chassis ground (-):

      WITH CONSOLE CODE

      (AD67) No. 8 (+) - Chassis ground (-):

   Is the voltage less than 1 V?

   Yes  : Go to  7 .

   No  : Repair short to power supply of harness between VDCCM&H/U and AVH switch connector.

7. CHECK AVH SWITCH  .

   Check the AVH switch. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>AUTO VEHICLE HOLD SWITCH>INSPECTION .

   Is the check result OK?

   Yes  : Go to  8 .

   No  : Replace the AVH switch. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>AUTO VEHICLE HOLD SWITCH .

8. CHECK COMBINATION METER  .

   Check the combination meter. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER SYSTEM>OPERATION>SELF-DIAGNOSIS DISPLAY MODE .

   Is the check result OK?

   Yes  : Replace the VDCCM&H/U. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM&H/U) .

   No  : Replace the combination meter. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER .
