Auto Vehicle Hold Switch: Inspection
- Measure the resistance between AVH switch terminals.
Preparation tool:
Circuit tester

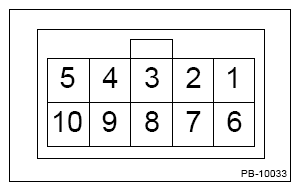

Terminal No. Inspection conditions Standard 3-8 Switch OFF 1 MΩ or more Switch ON Less than 1 Ω - Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.CAUTION: When applying battery voltage, do not mix up the positive (+) side and the negative (-) side.
Incorrect polarity connection may cause LED damage inside the switch.Terminal No. Inspection conditions Specification 7(+)-9(-) Apply battery voltage. Light ON - Replace the switch assembly EPB if the inspection result is not within the standard value.
