Auto Start Stop DC/DC CONVERTER 1

EXCEPT FOR MODEL WITH POWER AMPLIFIER

Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .

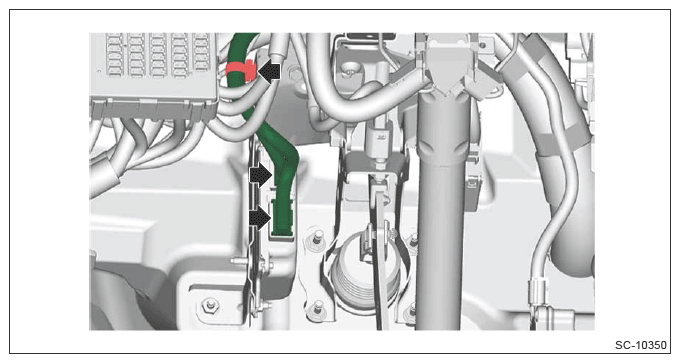

Disconnect the connector from the Auto Start Stop DC/DC converter 1 and remove the clip.

Courtesy of SUBARU OF AMERICA, INC.

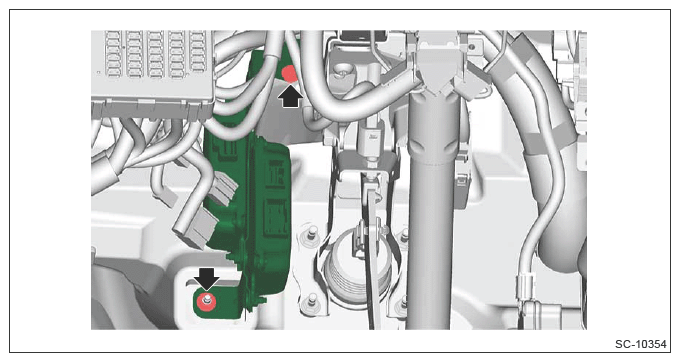

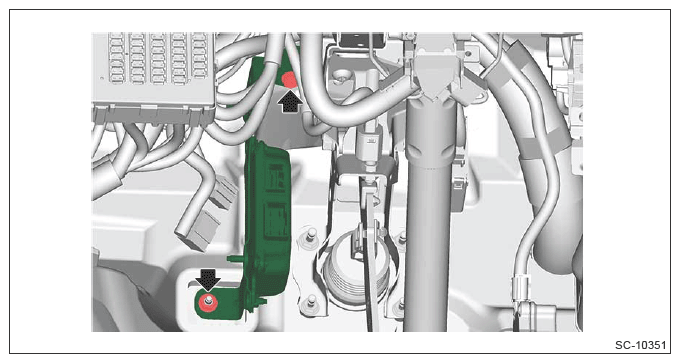

Remove the Auto Start Stop DC/DC converter 1 from the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

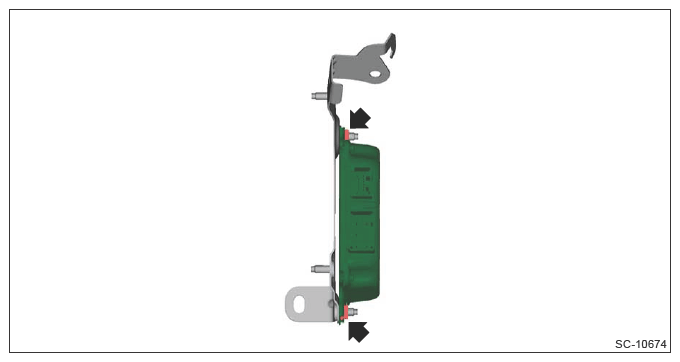

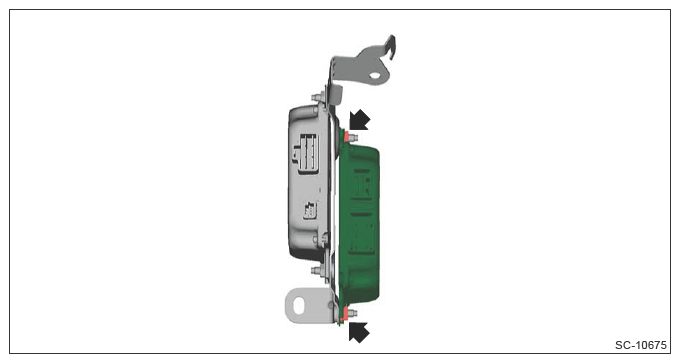

Remove the Auto Start Stop DC/DC converter 1 from the bracket.

Courtesy of SUBARU OF AMERICA, INC.

MODEL WITH POWER AMPLIFIER

Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .

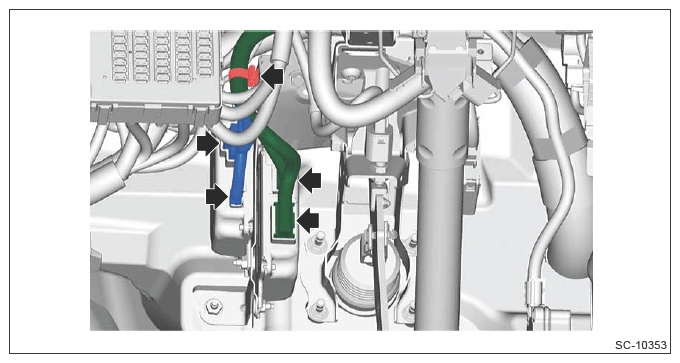

Disconnect the connector from the Auto Start Stop DC/DC converter 1 and Auto Start Stop DC/DC converter 2, and remove the clips.

Courtesy of SUBARU OF AMERICA, INC.

Remove the Auto Start Stop DC/DC converter 1 and Auto Start Stop DC/DC converter 2 from the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

Remove the Auto Start Stop DC/DC converter 1 from the bracket.

Courtesy of SUBARU OF AMERICA, INC.
