Auto Start Stop DC/DC CONVERTER 2

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Disconnect the connector from the Auto Start Stop DC/DC converter 1 and Auto Start Stop DC/DC converter 2, and remove the clips.
    G13224916Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the Auto Start Stop DC/DC converter 1 and Auto Start Stop DC/DC converter 2 from the vehicle.
    G13224917Courtesy of SUBARU OF AMERICA, INC.

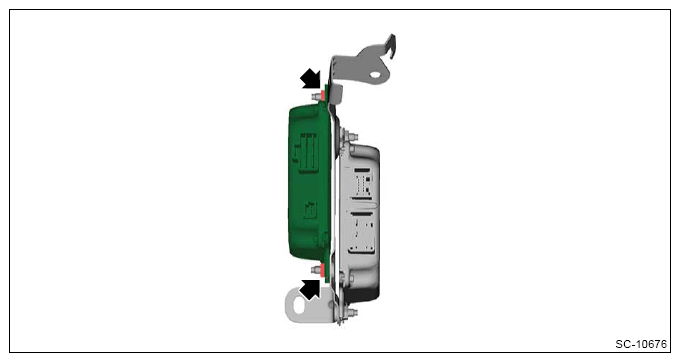

  4. Remove the Auto Start Stop DC/DC converter 2 from the bracket.
    G13591270Courtesy of SUBARU OF AMERICA, INC.
