Battery Cable Assembly: Installation

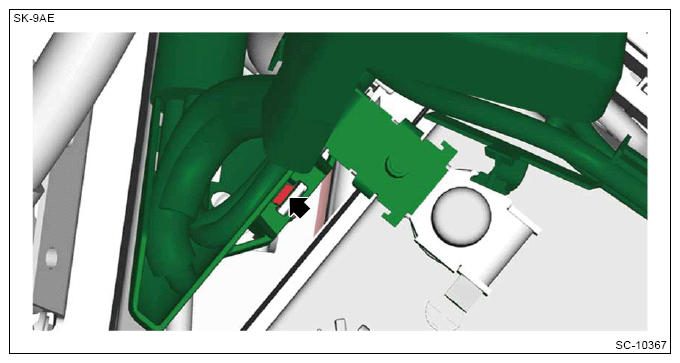

Secure the battery cable assembly to the bracket.

Courtesy of SUBARU OF AMERICA, INC.

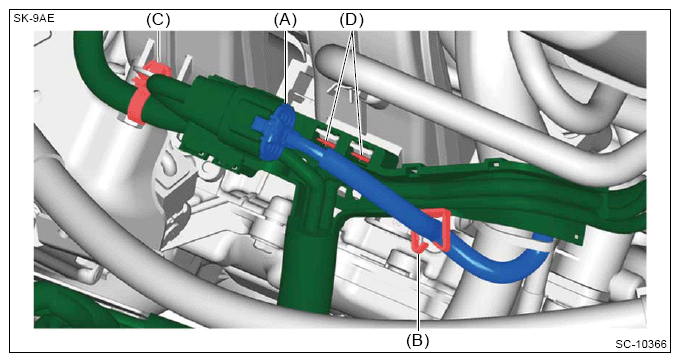

Secure the battery cable assembly with the claw (D) and clip (C).
Install the engine wiring harness to the clip (B), and connect the connector (A).

Courtesy of SUBARU OF AMERICA, INC.
Secure the battery cable assembly with the clip (A) and clip (B).
Connect the connector (C), connector (D), and the terminal (E).
Tightening torque:

15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

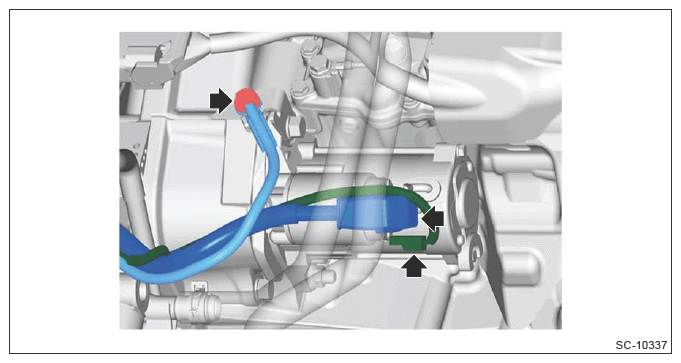

Connect the terminal B and connector to the starter.
Tightening torque:

11 N.m (1.1 kgf-m, 8.1 ft-lb)
Connect the ground terminal to the cable stay.
Tightening torque:

14 N.m (1.4 kgf-m, 10.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .

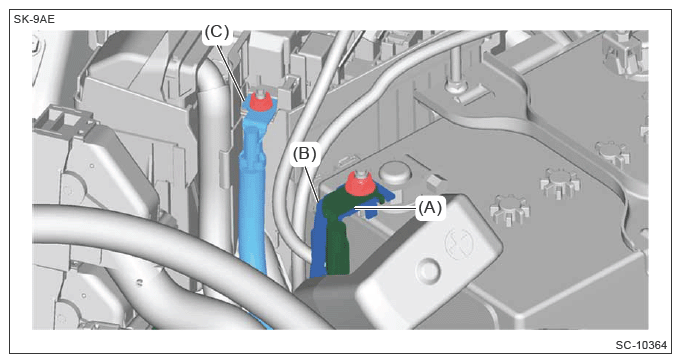

Connect the terminal (C), terminal (B) and terminal (A).
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .

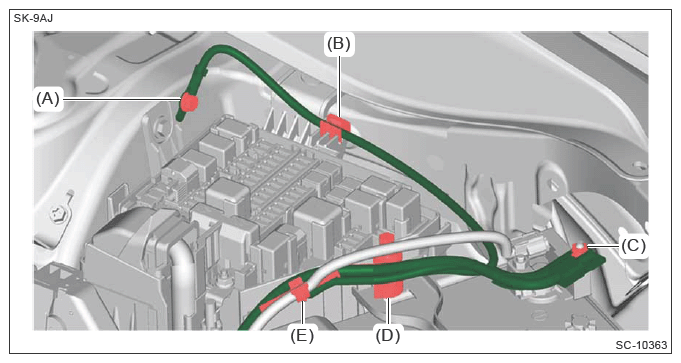

Install the battery sensor harness to the clip (E).
Install the battery cable holder (D), and connect the ground terminal (C).
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the ground cable to the clip (B), and connect the ground terminal (A).
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)
