Battery Sensor: Removal

  1. Disconnect the connector and ground terminal.
    G13224903Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the battery sensor.

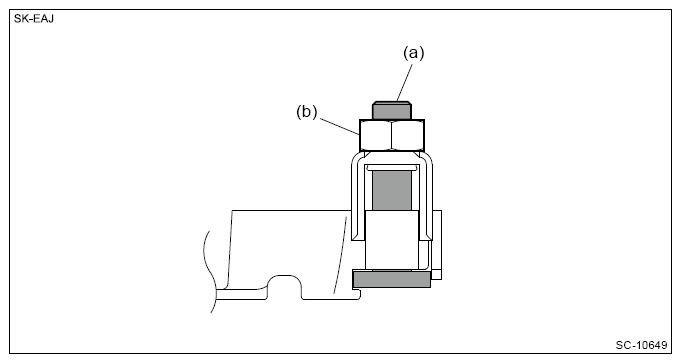

    CAUTION: The end of the bolt (a) of the battery sensor is crimped. Therefore, do not loosen the nut (b) to the crimped portion.
    G13224904Courtesy of SUBARU OF AMERICA, INC.
    G13224905Courtesy of SUBARU OF AMERICA, INC.
