Engine Starting System & Charging System: Battery: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Disconnect the connector from battery sensor. (When the battery is not replaced)
  3. Remove the battery sensor. (When replacing the battery) Ref. to STARTING/CHARGING SYSTEMS (H4DO)>Battery Sensor>REMOVAL .
  4. Disconnect the positive terminal of battery.
  5. Remove the battery cable holder.

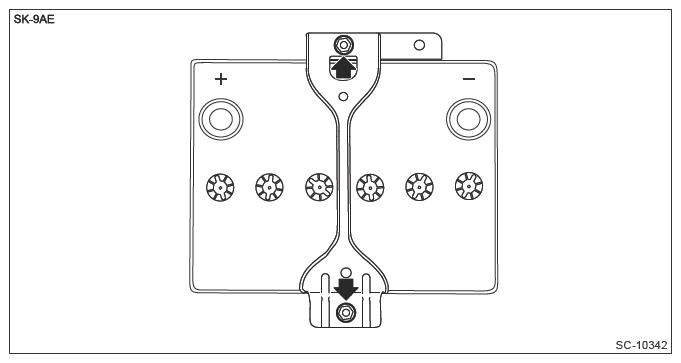

  6. Remove the battery holder.
    G13224883Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the battery.
