Components With Torque Specifications: Generator

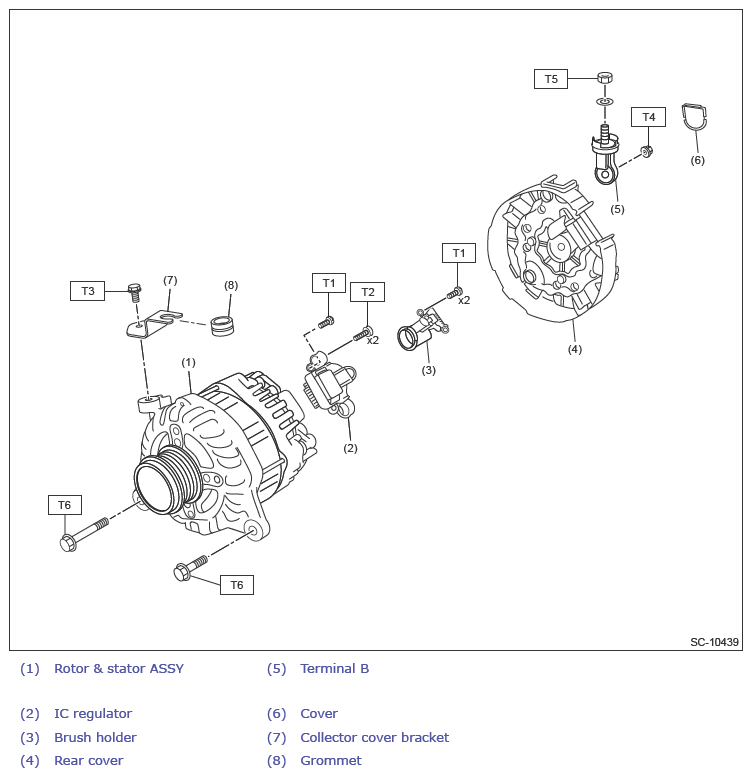

Fig 1: Exploded View Of Generator Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 3.9 (0.4, 2.9)

T3: 6.4 (0.7, 4.7)

T4: 8.9 (0.9, 6.6)

T5: 15.5 (1.6, 11.4)

T6:  Ref. to STARTING/CHARGING SYSTEMS (H4DO)>Generator>INSTALLATION .
