Engine Starting System & Charging System: Generator: Assembly

Install the IC regulator.
Tightening torque:

T1: 2 N.m (0.2 kgf-m, 1.5 ft-lb)

T2: 3.9 N.m (0.4 kgf-m, 2.9 ft-lb)

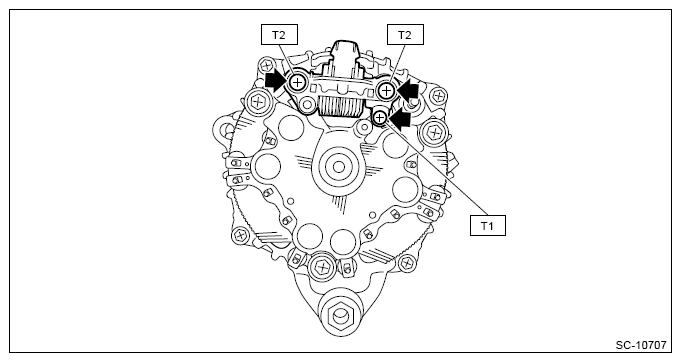

Fig 1: IC Regulator (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Install the brush holder.
NOTE: Use a socket with suitable size etc. to install the brush while being pushed.

Tightening torque:

2 N.m (0.2 kgf-m, 1.5 ft-lb)
Install the rear cover.
Install the terminal B.
Tightening torque:

8.9 N.m (0.9 kgf-m, 6.6 ft-lb)
Install the cover on the installation location of terminal B.
Manually turn the pulley to check that the rotor rotates smoothly.
