Engine Starting System & Charging System: Generator: Disassembly

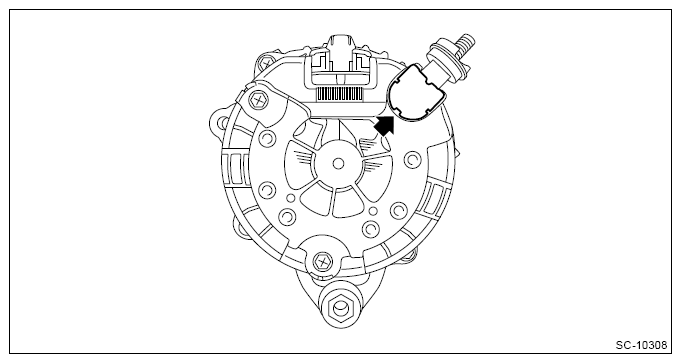

Remove the cover.
Courtesy of SUBARU OF AMERICA, INC.

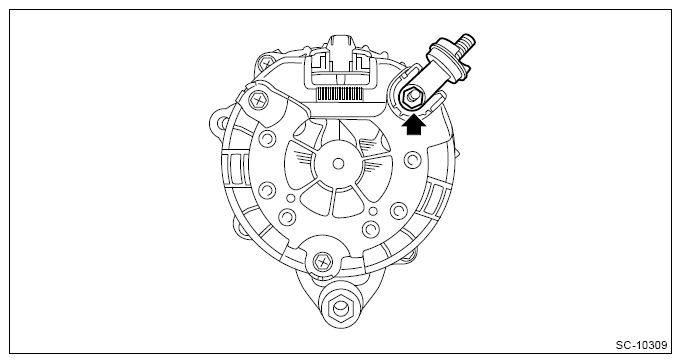

Remove the terminal B.
Courtesy of SUBARU OF AMERICA, INC.

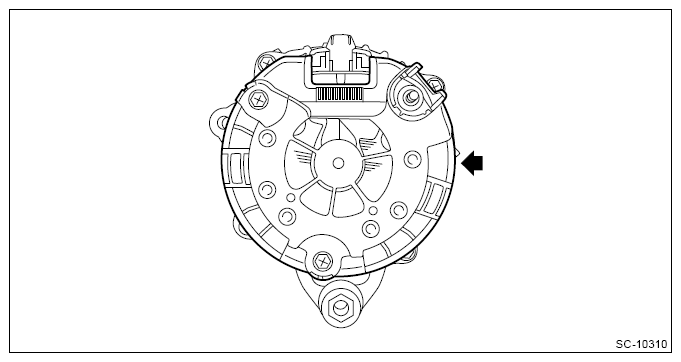

Remove the rear cover.
Courtesy of SUBARU OF AMERICA, INC.

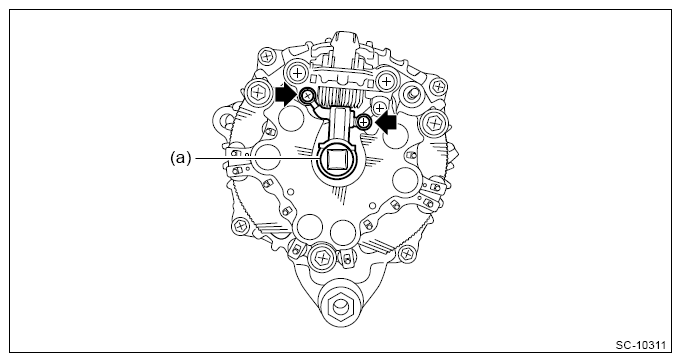

Remove the brush holder.
NOTE:
Set the socket with suitable size etc. (a) to the brush holder, and slide the brush holder toward the socket etc. (a) to remove so that the brush does not pop out.
