Engine Starting System & Charging System: Generator: Removal
- Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
- Remove the V-belts. Ref. to MECHANICAL (H4DO)>V-BELT>REMOVAL>V-BELT .

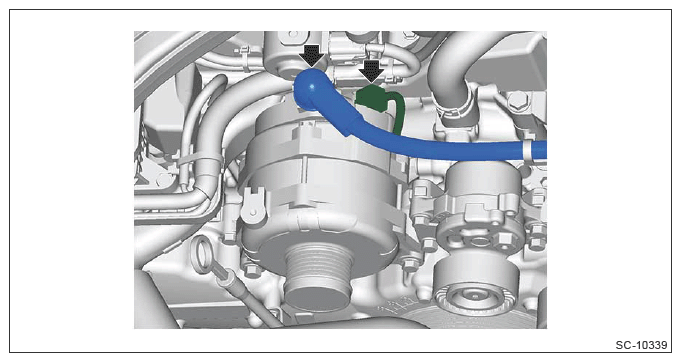

- Disconnect the connector and terminal B.

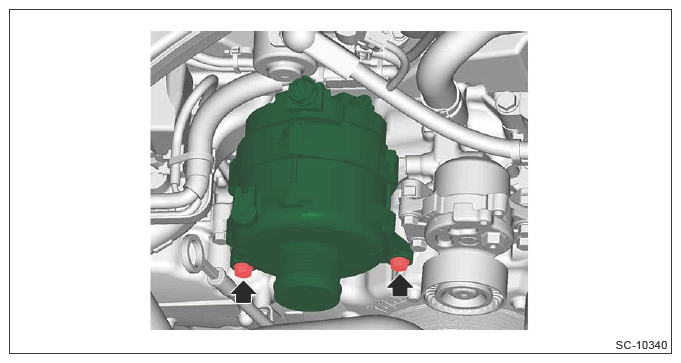

- Remove the generator.
