Active Grille Shutter: Installation

Install the ambient sensor.
Install the active grille shutter to the bracket active grille shutter front.
Install the active grille shutter and the bracket active grille shutter front as a unit in the order as shown in the figure.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

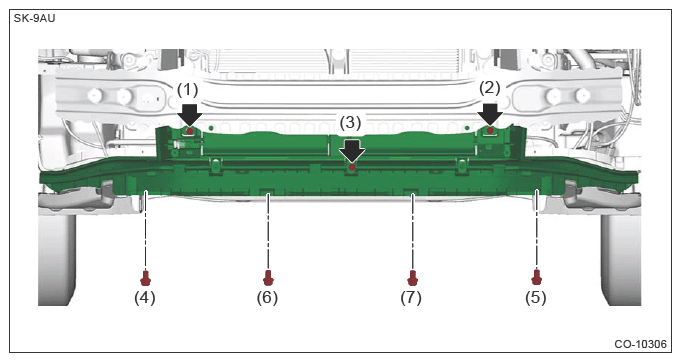

Fig 1: Active Grille Shutter And Bracket Active Grille Shutter Front Unit Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the active grille shutter actuator.
Connect the connector to the ambient sensor.
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
Install the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
When the active grille shutter has been replaced, perform the calibration (execute the system operation check for ACTGS control). Ref. to ENGINE (DIAGNOSTICS) (H4DO)>ACTIVE TEST .
