Active Grille Shutter: Removal

Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .
Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

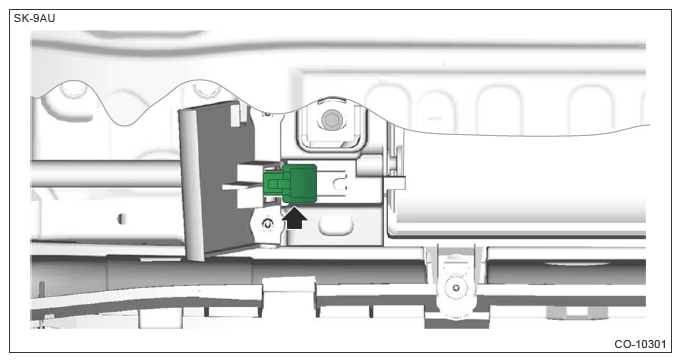

Disconnect the connector from ambient sensor.

Courtesy of SUBARU OF AMERICA, INC.

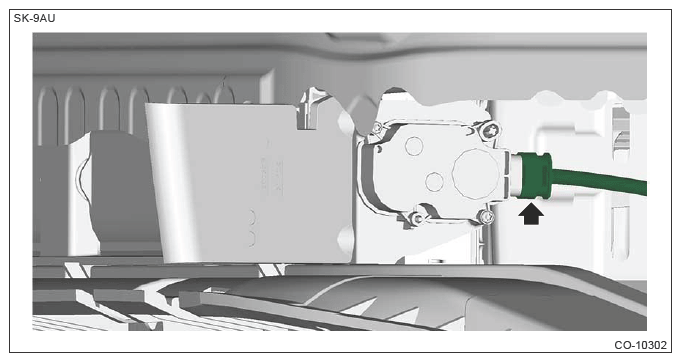

Disconnect the connector from the active grille shutter actuator.

Courtesy of SUBARU OF AMERICA, INC.

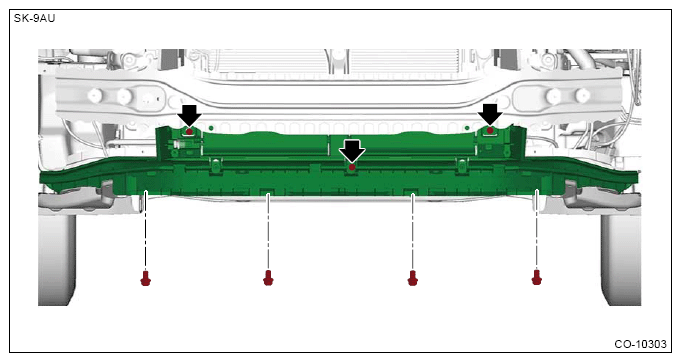

Remove the active grille shutter and the bracket active grille shutter front as a unit.

Courtesy of SUBARU OF AMERICA, INC.

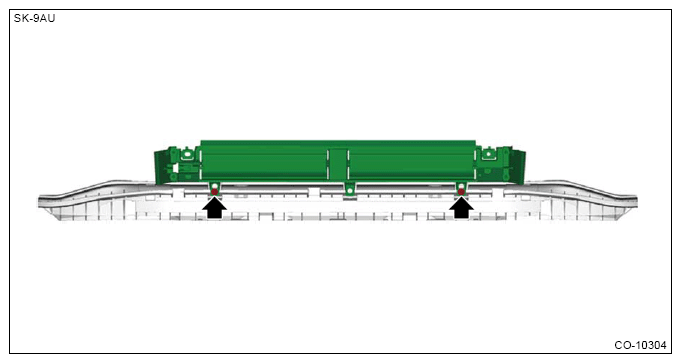

Remove the clip and remove the active grille shutter from the bracket active grille shutter front.

Courtesy of SUBARU OF AMERICA, INC.

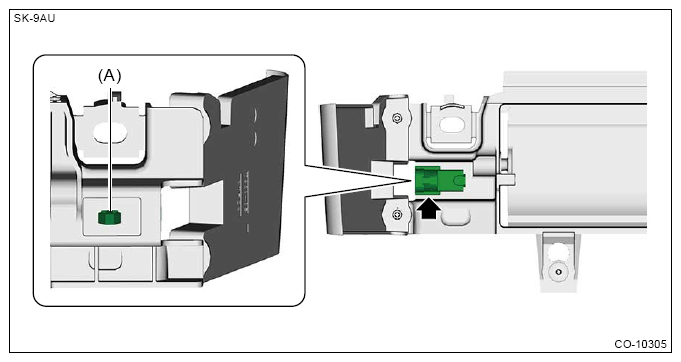

Remove the clip (A) to remove the ambient sensor.

Courtesy of SUBARU OF AMERICA, INC.
