Engine Cooling System: Radiator: Installation

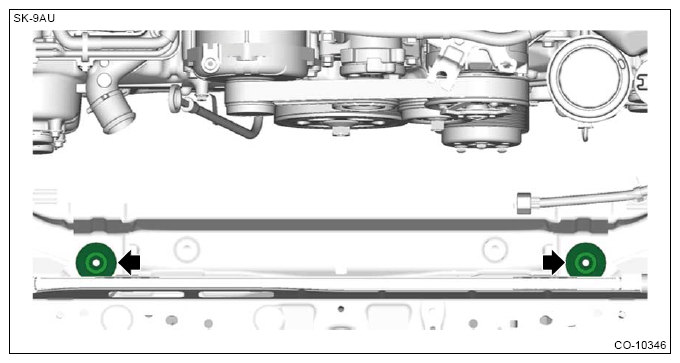

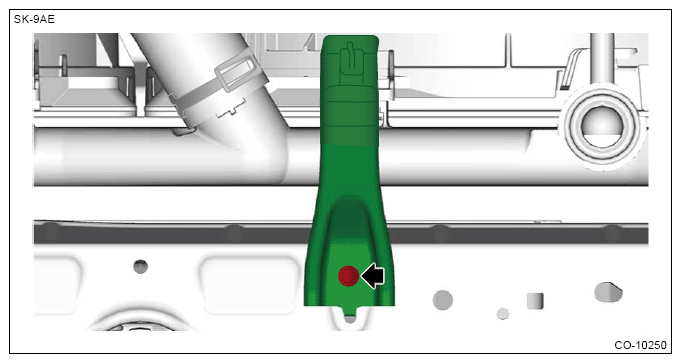

Install the radiator lower cushion.

Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to the vehicle.
NOTE: Insert the pin on the lower side of the radiator into the radiator lower cushions.

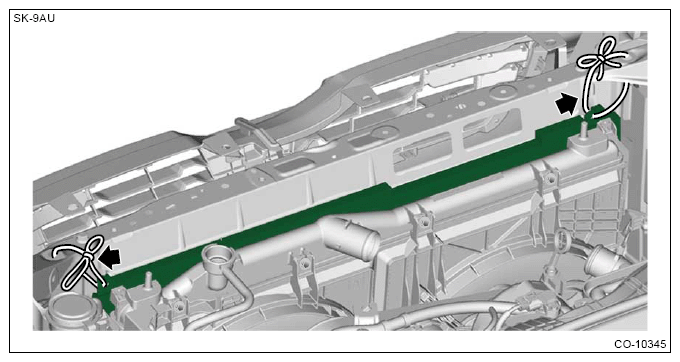

Remove the ropes or other items used to secure the condenser assembly to the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

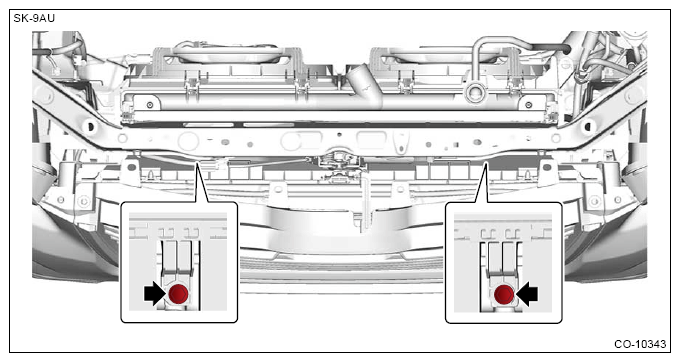

Install the bolts at the upper side of the condenser assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

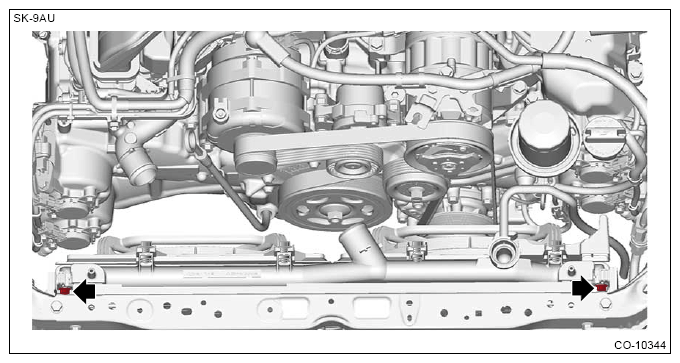

Install the bolts at the lower side of the condenser assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

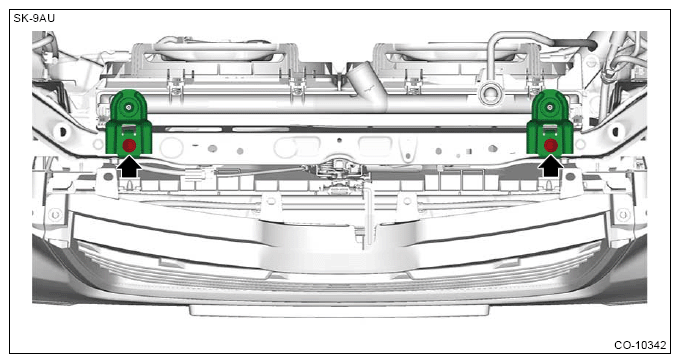

Install the radiator upper bracket.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator inlet hose.

Courtesy of SUBARU OF AMERICA, INC.

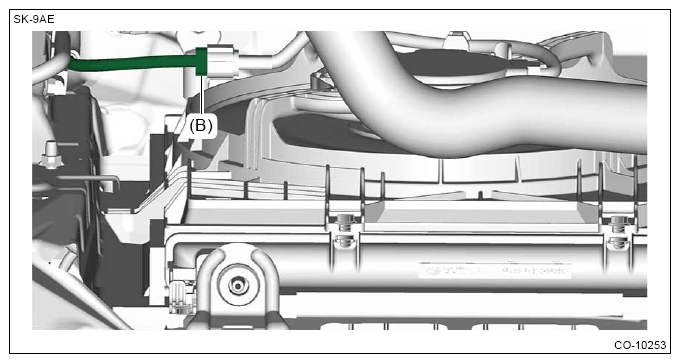

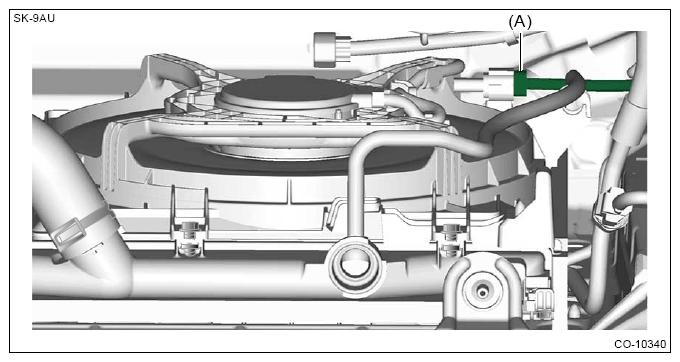

Connect the connector (A) to the main fan motor assembly and the connector (B) to the sub fan motor assembly.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the bracket hood stay.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

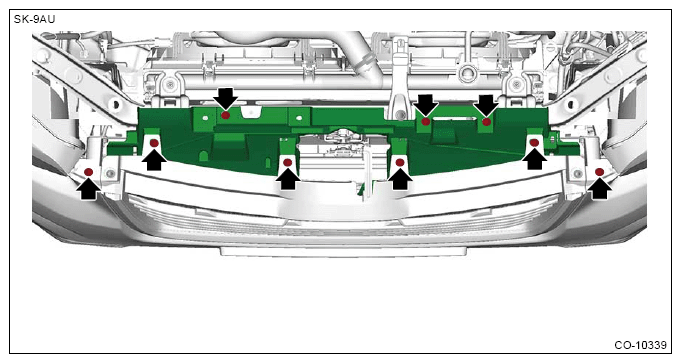

Install the bracket grille front.

Courtesy of SUBARU OF AMERICA, INC.

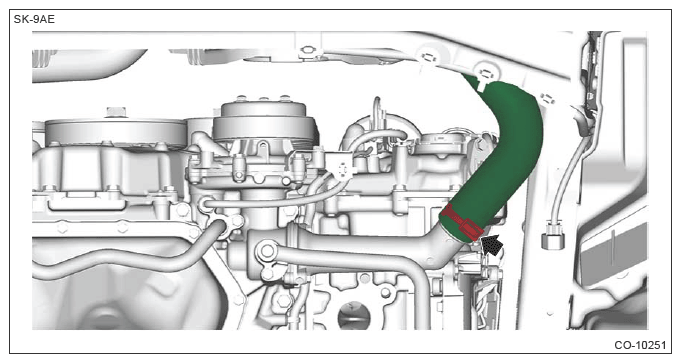

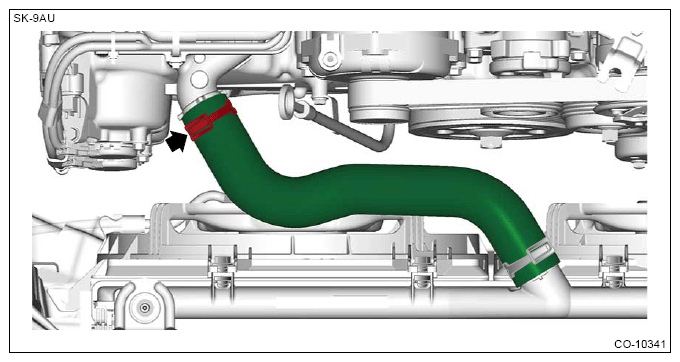

Connect the radiator outlet hose.

Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>INSTALLATION .
Install the reservoir tank. Ref. to COOLING (H4DO)>Reservoir Tank>INSTALLATION .
Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>INSTALLATION .
Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
Fill engine coolant. Ref. to COOLING (H4DO)>Engine Coolant>REPLACEMENT>FILLING OF ENGINE COOLANT .
