Engine Cooling System: Radiator: Removal

CAUTION:
  • The engine coolant is pressurized when it is hot. Wait until engine coolant cools down before proceeding the work.
  • If the engine coolant is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>REMOVAL .
  3. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .
  4. Remove the reservoir tank. Ref. to COOLING (H4DO)>Reservoir Tank>REMOVAL .
  5. Drain engine coolant. Ref. to COOLING (H4DO)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  6. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .
  7. Disconnect radiator outlet hose.
    G13224727Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the bracket grille front.

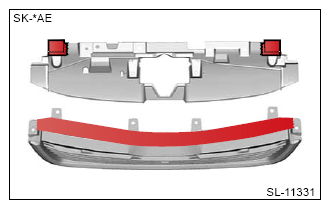

    1. Apply the protective tapes on the bracket grille front and the grille assembly front LWR.
      G13224728Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bracket grille front.
    G13224729Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the bracket hood stay.
    G13224730Courtesy of SUBARU OF AMERICA, INC.
  10. Disconnect the connector (A) from the main fan motor assembly and the connector (B) from the sub fan motor assembly.
    G13224731Courtesy of SUBARU OF AMERICA, INC.
    G13224732Courtesy of SUBARU OF AMERICA, INC.
  11. Disconnect the radiator inlet hose.
    G13224733Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the radiator upper bracket.
    G13224734Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the bolts at the lower side of the condenser assembly.
    G13224735Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the bolts at the upper side of the condenser assembly.
    G13224736Courtesy of SUBARU OF AMERICA, INC.
  15. Secure the condenser assembly to the vehicle using ropes or other items.
    NOTE: This procedure is required to prevent the condenser assembly from dropping off and also damage to the air conditioner pipes.
    G13224737Courtesy of SUBARU OF AMERICA, INC.
  16. Lift the radiator up and away from vehicle.
  17. Remove the radiator lower cushion.
    G13224738Courtesy of SUBARU OF AMERICA, INC.
