Oil Pan Upper

  1. Remove the water pump. Ref. to COOLING (H4DO)>WATER PUMP>REMOVAL>WATER PUMP .
  2. Remove the thermostat cover. Ref. to COOLING (H4DO)>THERMOSTAT>REMOVAL>THERMOSTAT COVER .
  3. Remove the oil level switch. Ref. to LUBRICATION (H4DO)>Oil Level Switch>REMOVAL .

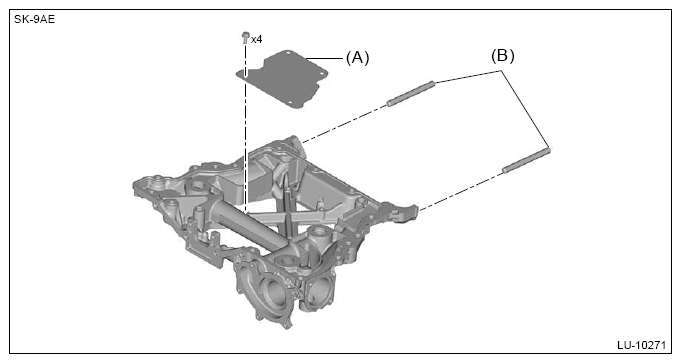

  4. Remove the baffle plate (A).
  5. Remove the stud bolt (B).
    G13224812Courtesy of SUBARU OF AMERICA, INC.
