Front Exhaust Pipe: Removal

CAUTION: Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.

Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
Remove the Cross Member support rear LH. Ref. to FRONT SUSPENSION>CROSS MEMBER SUPPORT>REMOVAL .

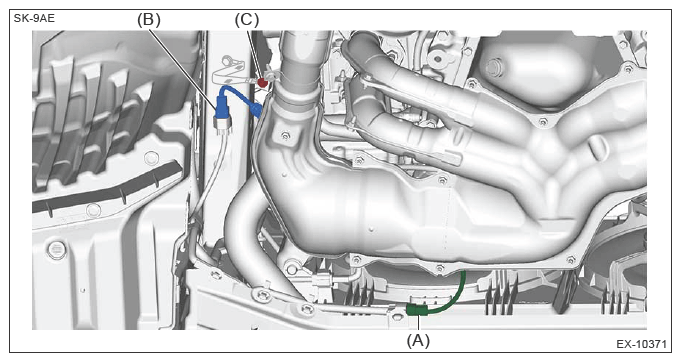

Disconnect the front oxygen (A/F) sensor connector (A), rear oxygen sensor connector (B) and the ground cord (C).

Courtesy of SUBARU OF AMERICA, INC.
Separate the front exhaust pipe and rear exhaust pipe.
NOTE: Suspend the rear exhaust pipe with rope etc.

Courtesy of SUBARU OF AMERICA, INC.

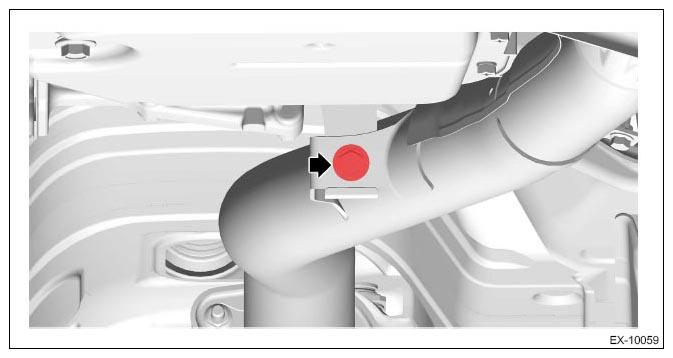

Remove the bolt which holds front exhaust pipe to hanger bracket.

Courtesy of SUBARU OF AMERICA, INC.
Remove the front exhaust pipe.
CAUTION: The front exhaust pipe is very heavy. Be careful not to drop it when removing.

Courtesy of SUBARU OF AMERICA, INC.
