Front Exhaust Pipe

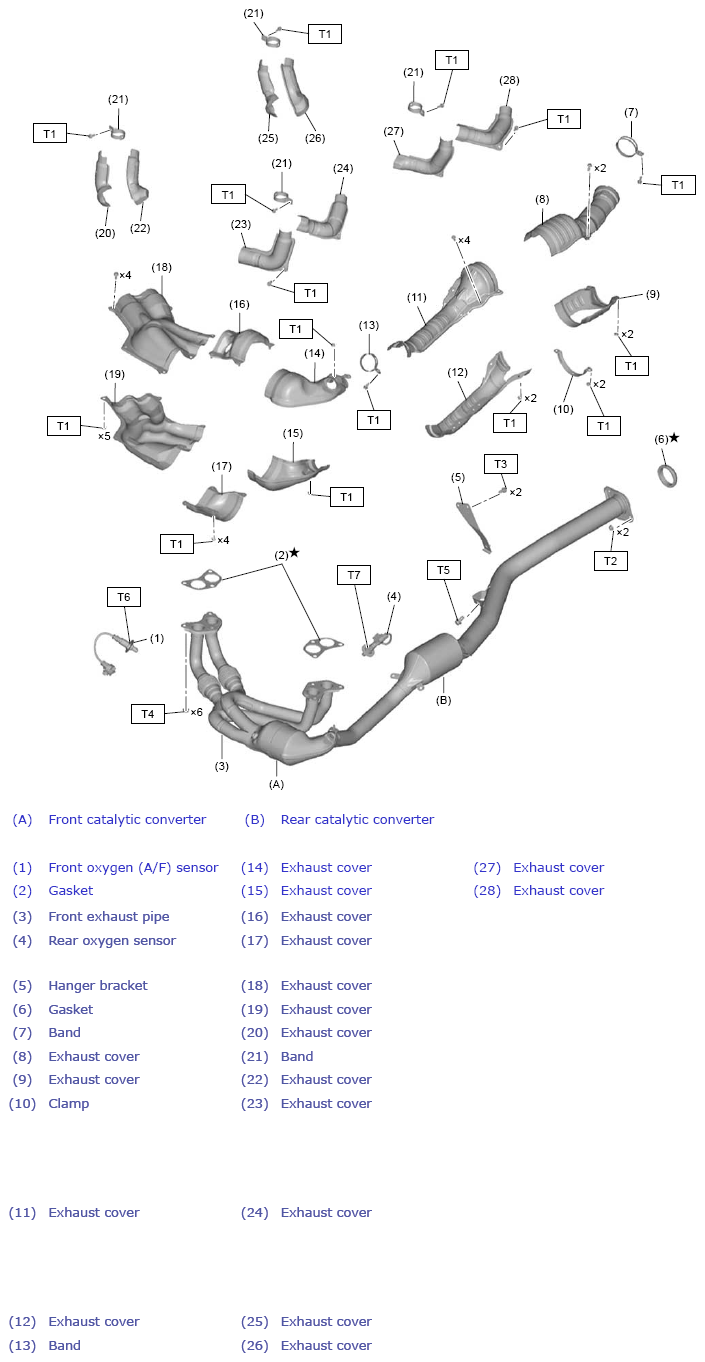

Fig 1: Exploded View Of Front Exhaust Pipe Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgfm, ft-lb)

T1: 13 (1.3, 9.6)

T2: 18 (1.8, 13.3)

T3: 23 (2.3, 17.0)

T4: 30 (3.1, 22.1)

T5: 35 (3.6, 25.8)

T6:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FRONT OXYGEN (A/F) SENSOR>INSTALLATION .

T7:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>REAR OXYGEN SENSOR>INSTALLATION .
