Exhaust System: Muffler: Removal
CAUTION:
Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.

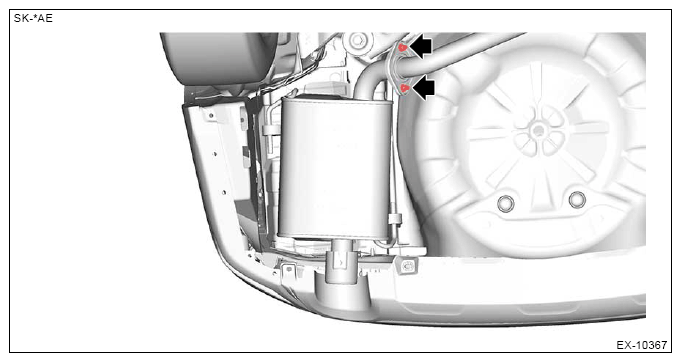

- Disconnect the rear exhaust pipe and muffler.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Apply a coat of spray type lubricant to the mating area of cushion rubber.

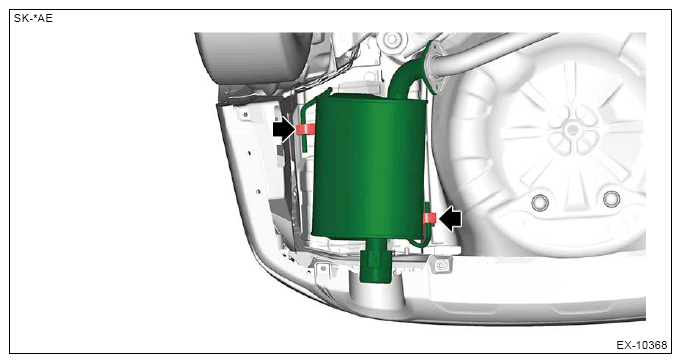

- Remove the muffler.
CAUTION:
Be careful not to let the muffler contact the rear bumper.
 Courtesy of SUBARU OF AMERICA, INC.
|

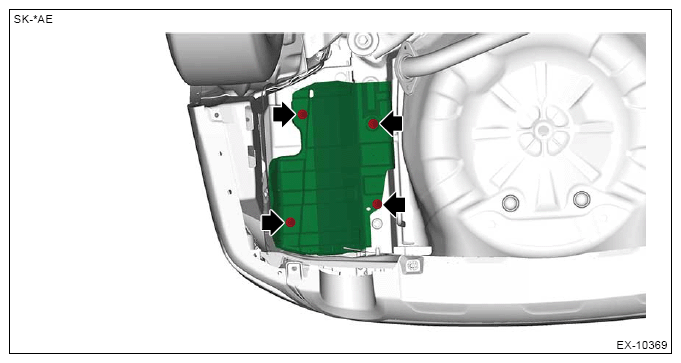

- Remove the rear exhaust cover.
NOTE:
Perform this procedure only when required.
 Courtesy of SUBARU OF AMERICA, INC.
|
