RH Side
- Connect the coupling harness and install the knock sensor.NOTE:

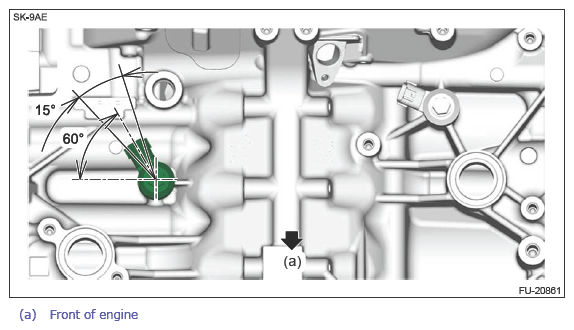

- Knock sensor must be positioned so that the connector center comes within the range shown in the figure.
- Make sure that the knock sensor and its connector do not touch the adjacent parts.
Tightening torque:
24 N.m (2.4 kgf.m, 17.7 ft.lb)
- Install the coupling harness to the clip (D).
- Connect the connector (B) and install the clip (C).
- Install the engine wiring harness with the bolt (A).
Tightening torque:
6.4 N.m (0.7 kgf.m, 4.7 ft.lb)
- Install the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>INSTALLATION
- Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
- Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
