Air Intake Boot: Installation

  1. Connect the PCV hose and set the air intake boot.
  2. Install the clips, and tighten the clamps.

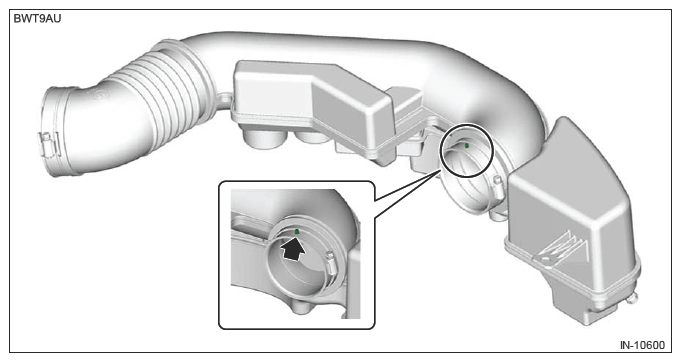

    NOTE: Align the clamp hole with the protrusion of the air intake boot.
    G13590551Courtesy of SUBARU OF AMERICA, INC.

    Tightening torque:

    3 N.m (0.3 kgf-m, 2.2 ft-lb)

  3. Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>Collector Cover>INSTALLATION .
