Air Intake Duct: Removal

  1. Remove the clips and remove the air intake duct (rear).
    G13224195Courtesy of SUBARU OF AMERICA, INC.

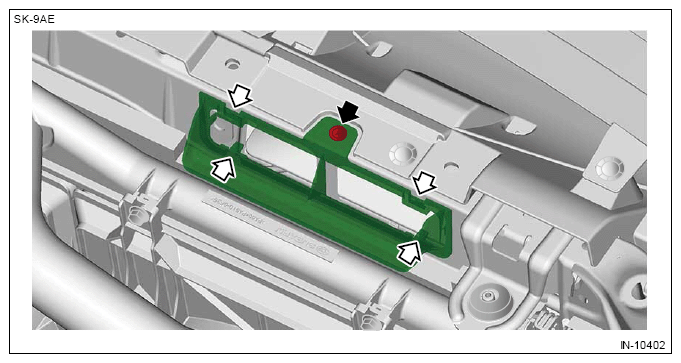

  2. Remove the clips to release the claws and remove the air intake duct (front).
    NOTE: Perform this procedure only when required.
    G13224196Courtesy of SUBARU OF AMERICA, INC.
