Collector Cover: Installation

Install the collector cover bracket.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
Install the collector cover in the order shown in the figure.
CAUTION: The operation must be carefully performed; otherwise the collector cover may be damaged.

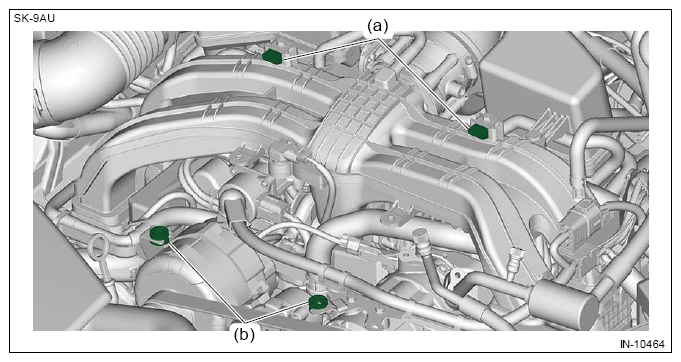

NOTE: Check the cushion (a) and grommet (b) for peel-off or disengagement.

Courtesy of SUBARU OF AMERICA, INC.

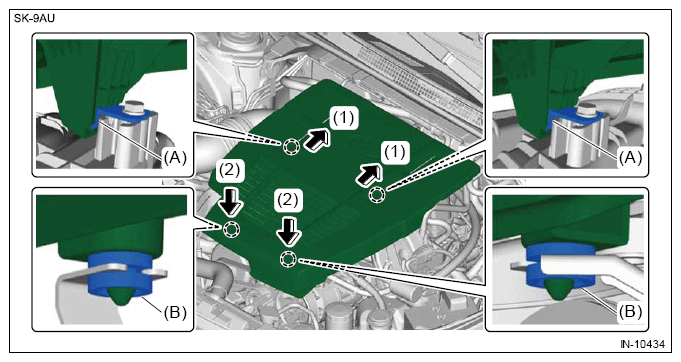

1. Insert the bracket insertion part at the collector cover backside into the collector cover bracket (A).
2. Install the collector cover by inserting the protrusion at the collector cover backside into the grommet (B).
NOTE: Be careful not to deform the bracket during installation.

Courtesy of SUBARU OF AMERICA, INC.
