Chain Cover: Disassembly

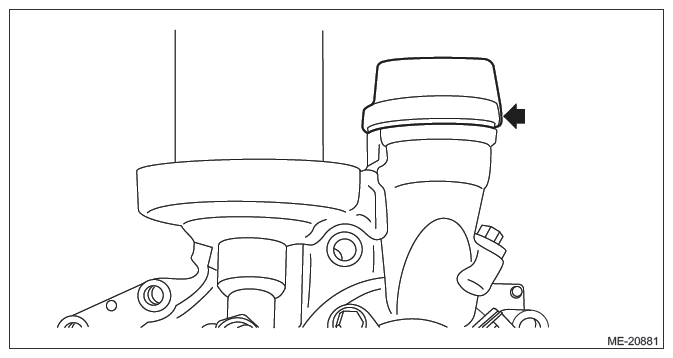

  1. Remove the oil filler cap.
    G11253248Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the engine oil filter and the oil pump union. Ref. to LUBRICATION (H4DO)>OIL FILTER>REMOVAL .
  3. Remove the oil pressure switch. Ref. to LUBRICATION (H4DO)>OIL PRESSURE SWITCH>REMOVAL .
  4. Remove the engine oil temperature sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>ENGINE OIL TEMPERATURE SENSOR>REMOVAL .
  5. Remove the oil control solenoid. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>OIL CONTROL SOLENOID>REMOVAL .
  6. Remove the camshaft position sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>CAMSHAFT POSITION SENSOR>REMOVAL .
