Engine Assembly: Installation

  1. Using the ST1, install the ST2 to the engine unit.

    Preparation tool:

    ST1: BOLT (18363AA050)

    ST2: HANGER (18360AA040)

    Tightening torque:

    43 N.m (4.4 kgf-m, 31.7 ft-lb)

    G13224279Courtesy of SUBARU OF AMERICA, INC.
  2. Support the engine unit with a lifting device and wire ropes, and remove the engine unit from the engine stand, etc.
  3. Install the engine mounting onto the engine.

    Tightening torque:

    35 N.m (3.6 kgf-m, 25.8 ft-lb)

  4. Position the engine in engine compartment and align it with transmission.
    NOTE: Be careful not to damage adjacent parts or body panels with crank pulley, oil level gauge, etc.
  5. With a lifting device and a garage jack, slowly lower the engine.
  6. Install the bolts which hold upper side of transmission to engine.

    Tightening torque:

    50 N.m (5.1 kgf-m, 36.9 ft-lb)

    G08316854Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the garage jack.
  8. Remove the lifting device and wire ropes.
  9. Remove the ST1 and ST2 from the engine unit.
    G13224279Courtesy of SUBARU OF AMERICA, INC.
  10. Install the torque converter to drive plate.
    1. Remove the ST from converter case.
      NOTE: Be careful not to drop the ST into the converter housing when removing the ST.
      G13224276Courtesy of SUBARU OF AMERICA, INC.
    2. Insert the wrench into the crank pulley bolt, and rotate the crank pulley to attach the four bolts securing the torque converter to the drive plate.
      NOTE: Be careful not to drop bolts into the converter housing.

      Tightening torque:

      25 N.m (2.5 kgf-m, 18.4 ft-lb)

      G13224275Courtesy of SUBARU OF AMERICA, INC.
    3. Install the plug (B) to the service hole, and connect the connector (A).
      G13224274Courtesy of SUBARU OF AMERICA, INC.
    4. Attach the PCV hose No. 1. Ref. to EMISSION CONTROL TAUX. EMISSION CONTROL DEVICES) (H4DO)>PCV HOSE>INSTALLATION>PCV HOSE NO. 1 .
  11. Install the starter. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>STARTER>INSTALLATION .
  12. Lift up the vehicle.
  13. Install the bolts and nuts which hold lower side of the transmission to engine.

    Tightening torque:

    50 N.m (5.1 kgf-m, 36.9 ft-lb)

    G08316839Courtesy of SUBARU OF AMERICA, INC.
  14. Install the Cross Member support rear RH. Ref. to FRONT SUSPENSION>CROSS MEMBER SUPPORT>INSTALLATION .
  15. Install the nuts which hold the engine mounting to the Cross Member COMPL front.
    CAUTION: Use new nuts.
    NOTE: Make sure that locators (a) of the engine mounting are securely inserted.

    Tightening torque:

    90 N.m (9.2 kgf-m, 66.4 ft-lb)

    G11253186Courtesy of SUBARU OF AMERICA, INC.
  16. Connect the ground cord.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    G13224271Courtesy of SUBARU OF AMERICA, INC.
  17. Lower the vehicle.
  18. Connect the fuel delivery tube and evaporation hose.

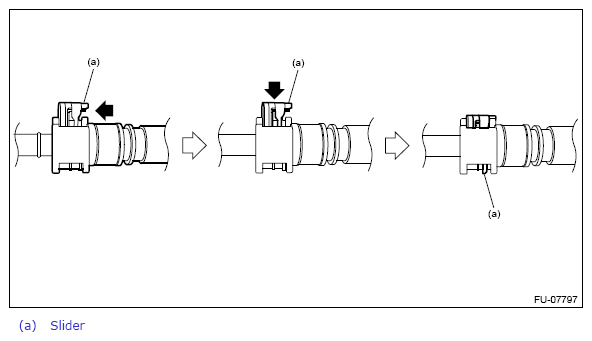

    1. Connect the quick connector on the fuel delivery tube (C) to the fuel pipe, and install clip (B) to the intake manifold assembly.
      CAUTION:
      • Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
      • When connecting the quick connector, make sure to insert it all the way in before locking the slider.
      • When it is difficult to lock the slider, check that the connector is fully inserted.
      • After locking the slider, pull the quick connector itself to the disconnecting direction, and then push to the connecting direction in order to confirm secure connection. Always make sure to perform this confirmation ending up with a pushing in.
      NOTE: Connect the quick connector as shown in the figure.
      G13867853Courtesy of SUBARU OF AMERICA, INC.
    2. Connect the evaporation hose (A) to clip (B), and connect evaporation hose (A) to purge control solenoid valve.
      G13224278Courtesy of SUBARU OF AMERICA, INC.
  19. Connect the water hose (C) and water hose (B) to the CVTF cooler (with warmer feature) and the EGR cooler.
  20. Connect the brake booster vacuum hose (A) to the brake vacuum pump.
    NOTE: When connecting the brake booster vacuum hose, align the alignment marks (a) on the brake booster vacuum hose and the vacuum pump.
    G13230034Courtesy of SUBARU OF AMERICA, INC.
    G13224270Courtesy of SUBARU OF AMERICA, INC.
  21. Install the pitching stopper. Ref. to PITCHING STOPPER .
  22. Connect the transmission harness connector to the engine wiring harness.
    G13224269Courtesy of SUBARU OF AMERICA, INC.

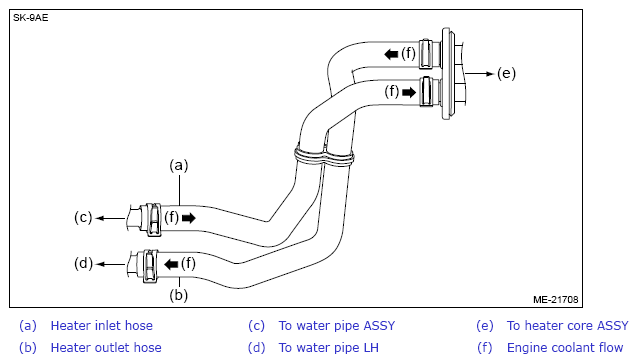

  23. Connect the heater inlet hose (A) and the heater outlet hose (B).
    NOTE: Be careful not to mix up the heater inlet hose and the heater outlet hose when connecting them.
    G13867858Courtesy of SUBARU OF AMERICA, INC.
    G13224268Courtesy of SUBARU OF AMERICA, INC.

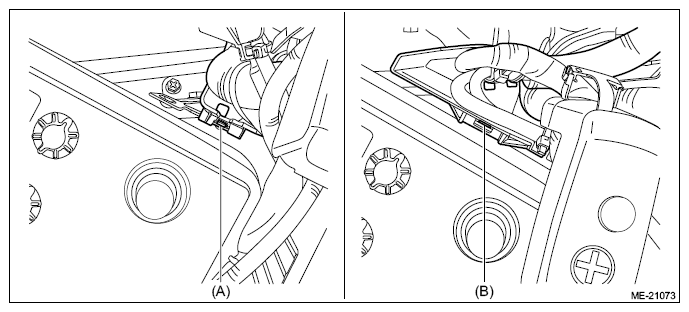

  24. Place the engine wiring harness and secure the engine wiring harness to the bracket with the claw (A).
  25. Set the battery cable assembly, and secure the battery cable assembly to the bracket with claw (B).
    G13224300Courtesy of SUBARU OF AMERICA, INC.
  26. Install the engine wiring harness to the clip (C), and connect the connector (B) to the main fuse box.
  27. Connect connector (A) to ECM.
    CAUTION: To prevent damage to the connector (A), when connecting the connector (A), insert the connector (A) straight in until it stops, and while maintaining the position, lock the lever.
    NOTE: When connecting the connector (A), check that the lever is located at the position shown in the figure (position beyond the lock portion (a)).
    G13223993Courtesy of SUBARU OF AMERICA, INC.
    G13224266Courtesy of SUBARU OF AMERICA, INC.
  28. Secure the battery cable assembly with the claw (E) and clip (D).
  29. Install the engine wiring harness to the clip (C), and connect the connector (B).
  30. Connect the brake booster vacuum hose (A).
    G13867823Courtesy of SUBARU OF AMERICA, INC.
  31. Connect the hose pressure suction and the hose pressure discharge to the A/C compressor. Ref. to AIR CONDITIONER>HOSE AND PIPE>INSTALLATION .
  32. Secure the battery cable assembly with the clip (A) and clip (B).
  33. Connect the connector (C), connector (D), and the terminal (E).

    Tightening torque:

    15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

    G13223860Courtesy of SUBARU OF AMERICA, INC.
  34. Install the radiator. Ref. to COOLING (H4DO)>RADIATOR>INSTALLATION .
  35. Install the air intake case (rear). Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>INSTALLATION .
  36. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
  37. Connect the ground terminal of the battery sensor and the positive terminal of the battery. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  38. Install the fuel filler cap, and close the fuel filler lid.
  39. Fill engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
  40. Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .
  41. Set the panel COM PL front hood to the normal position. Ref. to REPAIR CONTENTS>NOTE>STAY ASSEMBLY FRONT HOOD .
  42. Install the striker assembly front hood. Ref. to EXTERIOR BODY PANELS>FRONT HOOD>ASSEMBLY .
  43. Close the panel COMPL front hood.
