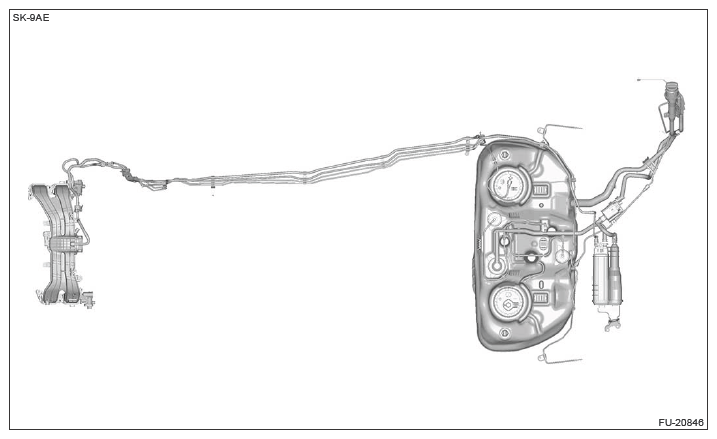

Fuel Delivery And Evaporation Lines: Removal: Notes

G13224092Courtesy of SUBARU OF AMERICA, INC.
WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION: Be careful not to spill fuel.
  1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel>PROCEDURE>RELEASING OF FUEL PRESSURE .
  2. Drain fuel. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel>PROCEDURE>DRAINING FUEL (WITH SUBARU SELECT MONITOR) .
  3. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  4. Open the fuel filler lid and remove the fuel filler cap.
    NOTE: This operation is required to release the inner pressure of the fuel tank.

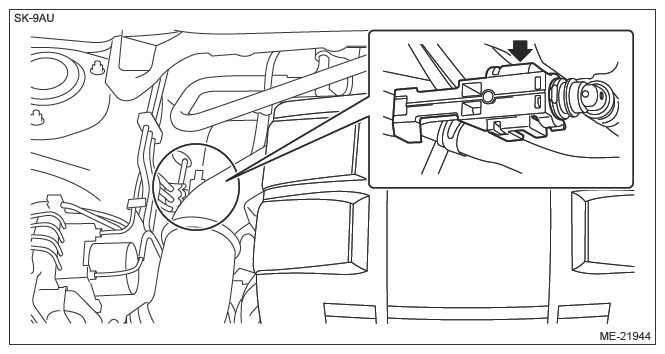

  5. Remove the fuel delivery tube clamp from the fuel delivery tube.
    G13224000Courtesy of SUBARU OF AMERICA, INC.

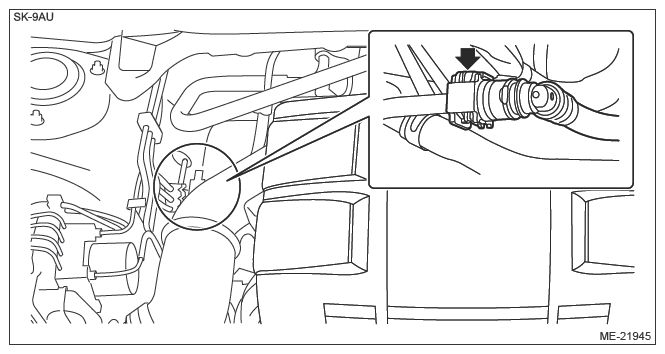

  6. Disconnect the quick connector on the fuel delivery tube from the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE A) .
    G13224001Courtesy of SUBARU OF AMERICA, INC.

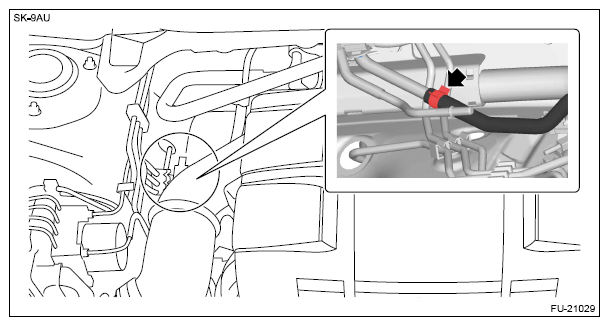

  7. Disconnect the evaporation hose from the fuel pipe assembly.
    G13224095Courtesy of SUBARU OF AMERICA, INC.

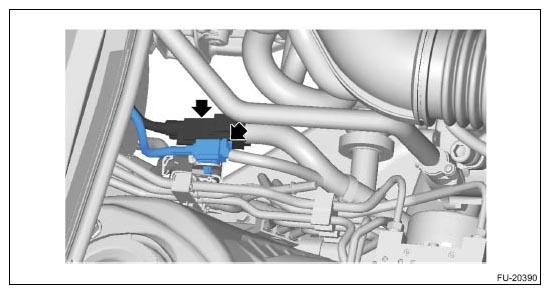

  8. Remove the connector from the fuel pipe bracket A.
    G11252989Courtesy of SUBARU OF AMERICA, INC.
  9. Lift up the vehicle.

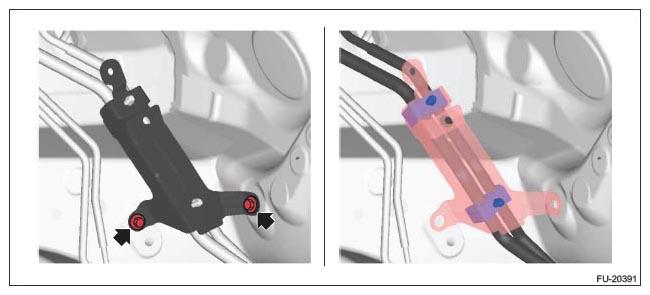

  10. Remove the bolts securing the fuel bracket A, and remove the pipe clamp from the fuel pipe assembly.
    G11252990Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Tank>REMOVAL .
  12. Remove the hoses and tubes from the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>General Description>COMPONENT>FUEL TANK 1 .

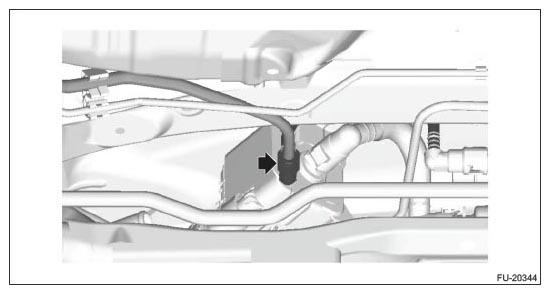

  13. Disconnect the purge tube from the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE E) .
    G11252991Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the under cover rear RH. Ref. to EXTERIOR/INTERIOR TRIM>FLOOR UNDER PROTECTOR>REMOVAL .
  15. Disconnect the brake pipe. Ref. to BRAKE>BRAKE HOSE>REMOVAL>REAR BRAKE HOSE . Ref. to BRAKE>BRAKE PIPE>REMOVAL>CENTER BRAKE PIPE .

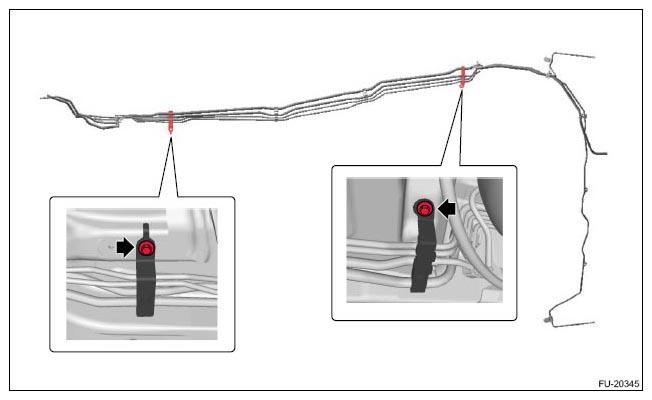

  16. Remove the bolts securing the fuel pipe bracket B and the fuel pipe bracket C, and remove the pipe clamp from the fuel pipe assembly.
    G11252992Courtesy of SUBARU OF AMERICA, INC.

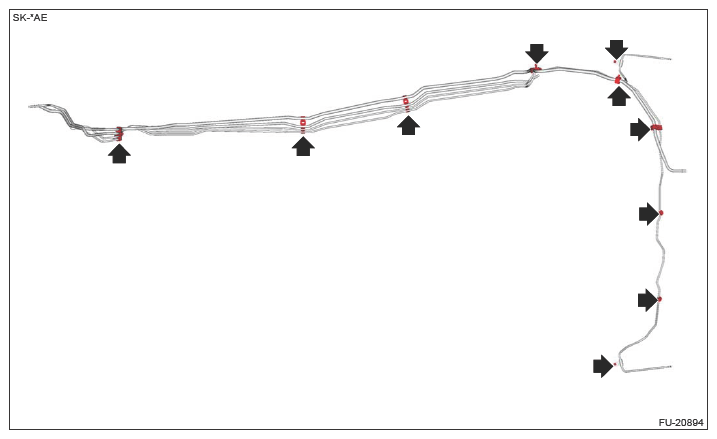

  17. Remove the fuel pipe assembly.
    G13224100Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the fuel sub delivery tube.
    1. Remove the fuel pump. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Pump>REMOVAL .
    2. Remove the fuel sub level sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Sub Level Sensor>REMOVAL .
    3. Remove the fuel sub delivery tube from the fuel tank.
