Fuel Delivery Pipe

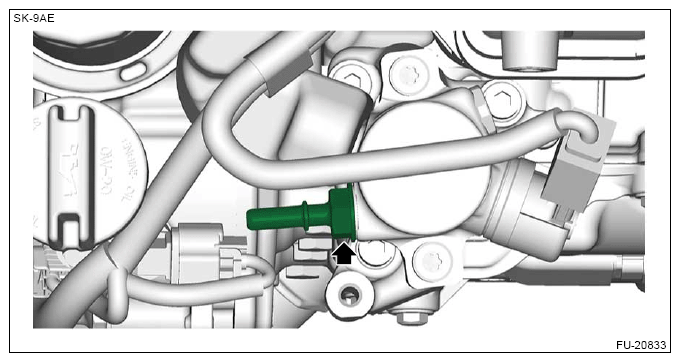

Using a new gasket, install the fuel delivery pipe B to the high-pressure fuel pump.
Tightening torque:

48 N.m (4.9 kgf-m, 35.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the fuel delivery pipe A. Ref. to INSTALLATION .

Courtesy of SUBARU OF AMERICA, INC.
Install the fuel pipe protector.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY>INSTALLATION .
