High-Pressure Fuel Pump

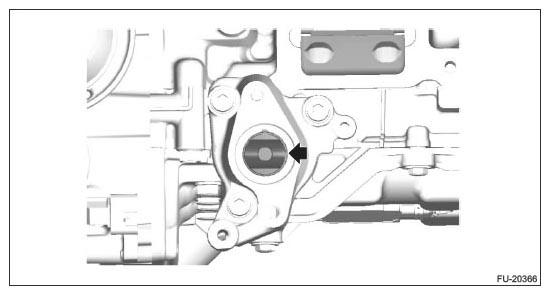

Install the fuel pump lifter.
NOTE:
- Apply engine oil to the side of the high-pressure fuel pump case and to the bottom surface of the fuel pump lifter.
- After installing the fuel pump lifter, rotate the crankshaft in order to set the fuel pump lifter to the lowest position.
Courtesy of SUBARU OF AMERICA, INC.

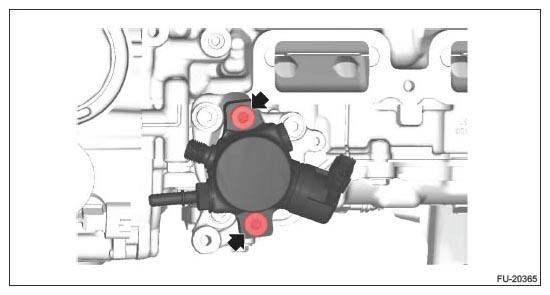

Set a new O-ring, and install the high-pressure fuel pump using TORX PLUS^® 40IP.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

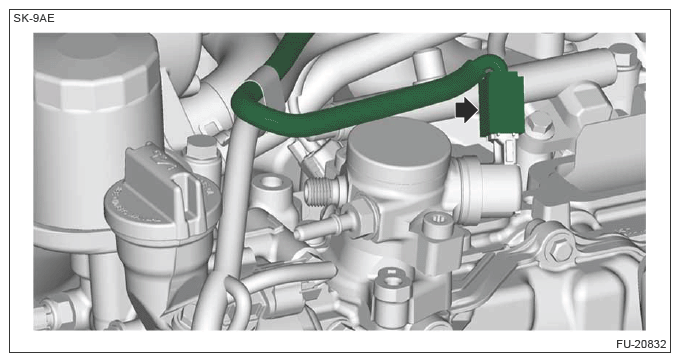

Connect the connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the high-pressure fuel delivery pipe. Ref. to INSTALLATION .
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
Install the collector cover. Ref. to INTAKE (INDUCTION) (H4DO)>COLLECTOR COVER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
