Spark Plug And Ignition Coil

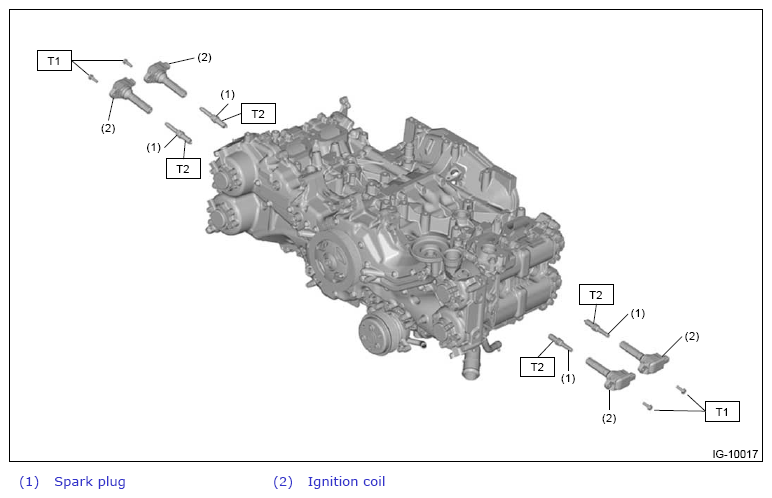

Fig 1: Spark Plug And Ignition Coil
G13868397Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.5 (0.9, 6.3)

T2: 17.5 (1.8, 12.9)
