LH Side

  1. Remove the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY>REMOVAL .
  2. Disconnect connector (A) from ECM.
    CAUTION: In order to prevent damaging the connector (A), check that the lock is released completely when moving the lever.
    NOTE: To disconnect the connector (A), press the portion (a) shown in the figure to release the lock and move the lever in the direction of arrow.
    G13223989Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector (B) and terminal (C) from the main fuse box, and remove the engine wiring harness from the clip (D).
    G13223840Courtesy of SUBARU OF AMERICA, INC.

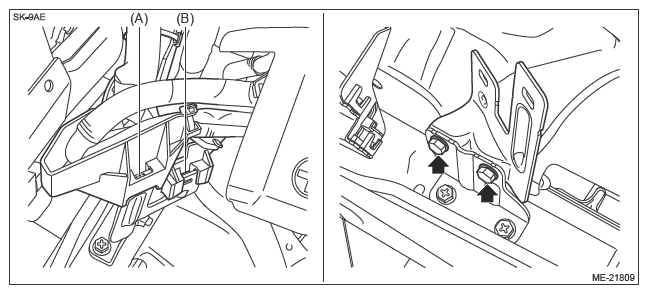

  4. Release the claw (A) securing the battery cable assembly to the bracket.
  5. Release the claw (B) securing the engine wiring harness to the bracket, and place it aside so that it does not interfere with work.
  6. Remove the bracket.
    G13224425Courtesy of SUBARU OF AMERICA, INC.

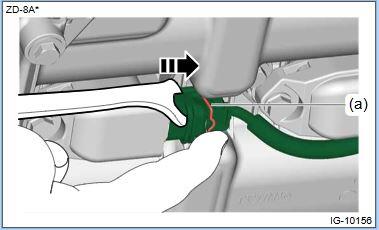

  7. Disconnect the connector from ignition coil.
    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    G10318929Courtesy of SUBARU OF AMERICA, INC.

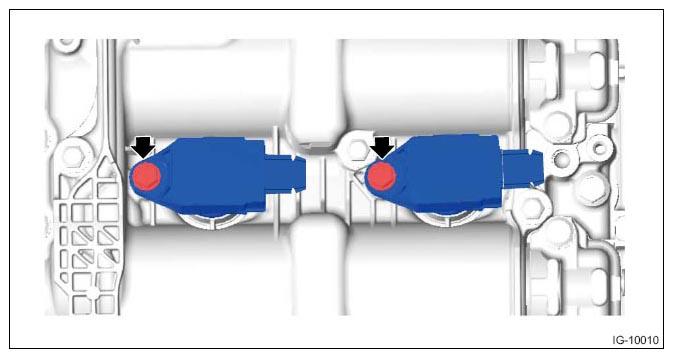

  8. Remove the ignition coil.
    G11253693Courtesy of SUBARU OF AMERICA, INC.
