RH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER CASE>REMOVAL .
  3. Disconnect the connector from ignition coil.

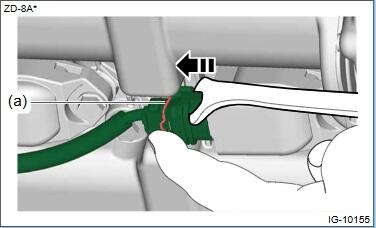

    NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.
    G10318927Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the ignition coil.
    G11253689Courtesy of SUBARU OF AMERICA, INC.
