Fuel Tank 1

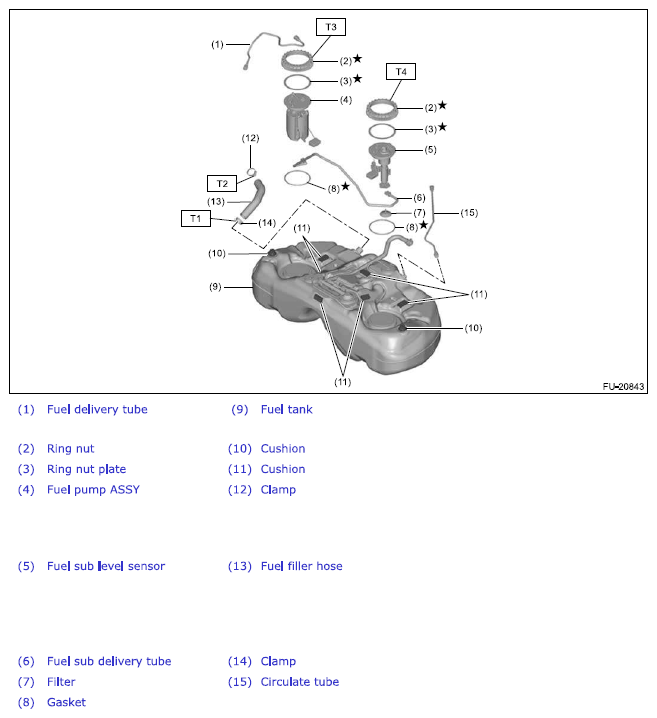

Fig 1: Fuel Tank 1 Components

G13867335

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, l.S)

T2: 2.S (0.3, 1.8)

T3: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Pump>INSTALLATION .

T4: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Sub Level Sensor>INSTALLATION .
