Stay Assembly Front Hood

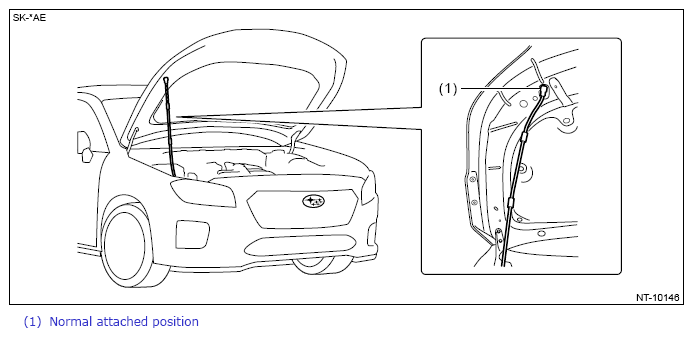

- Always attach the stay assembly front hood to the normal position when performing works such as inspections and general maintenance.CAUTION:
- During the inspection and general maintenance, always be sure to turn the ignition switch to OFF.
- At the inspection and general maintenance, do not detach the stay assembly front hood.

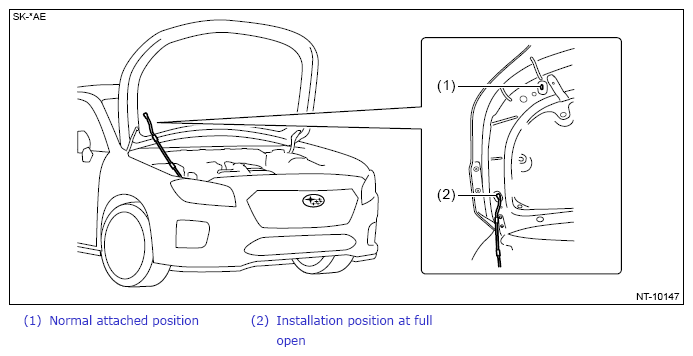

- When wider front hood opening is necessary, set the stay assembly front hood mounting position (front hood side) to the lower position (hinge COMPL front hood section) as shown in the figure.
