Driver's Airbag Module: Removal
CAUTION:

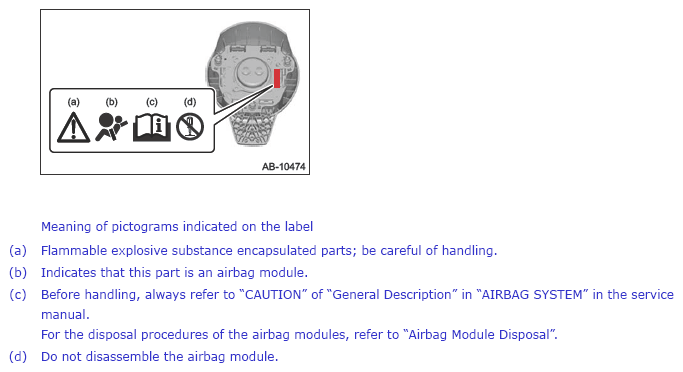

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
- Position the front wheels straight ahead.
- Turn the ignition switch to OFF.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
- Remove the driver's airbag module.

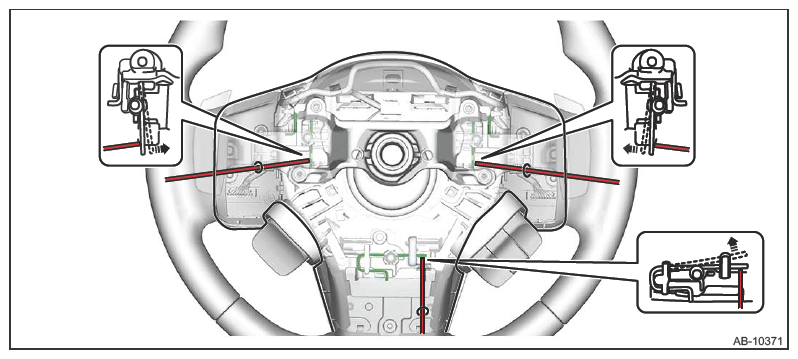

- Using a hexagon wrench etc. wrapped by protective tape, insert the snap pins and release the locks (three locations).
- Disconnect the horn harness and airbag connector, and remove the driver's airbag module. Ref. to AIRBAG SYSTEM>Airbag Connector>PROCEDURE>DRIVER'S AIRBAG MODULE AND CURTAIN AIRBAG MODULE .
- Using a hexagon wrench etc. wrapped by protective tape, insert the snap pins and release the locks (three locations).
