Disposal of Pretensioner: Procedure
CAUTION:
- Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Side impact sensor (under the rear center seat) for the airbag system is located under the front center of the rear seat cushion. Be careful not to apply strong impact to the sensor when working with the rear seat cushion removed.
- Before discarding a pretensioner, always perform an activation process to prevent any false activation.
- Wear protective gloves, safety goggles and earplugs during this operation. Wash your hands afterwards.
- Do not touch the pretensioner just after activation because it is very hot. Before handling it for disposal, wait for 40 minutes.
- Perform a pretensioner operation process in a safe, level place. Do not perform the process outdoors when there is a strong rain or wind.
- Perform front seat belt operation process at each location one after another. Do not perform operation process simultaneously on front pretensioner, lap pretensioner and adaptive force limiter.
- Do not drop or damage the pretensioner.
- A large explosive noise will occur when the pretensioner is deployed. Warn persons in the area, and do not allow anyone to approach a radius of 5 m (16 ft) from the discard location.
- After activating the pretensioner, smoke may arise. Therefore, always perform an operation process in a well-ventilated place without any smoke sensor.
- Do not expose the activated pretensioner to water.
- Wrap the activated pretensioner in a sealed vinyl bag when discarding.
- If it is impossible to perform a pretensioner activation process due to some situational reasons, consult SUBARU dealership or one of the authorized workshops.
- Fold the backrest all the way forward, and move the front seat all the way forward.
- Turn the ignition switch to OFF.
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .

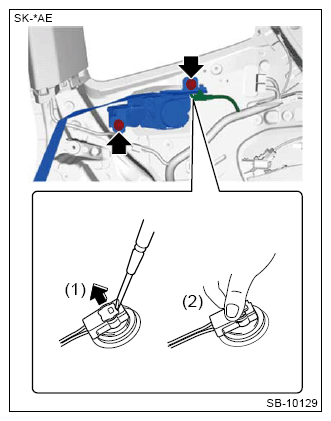

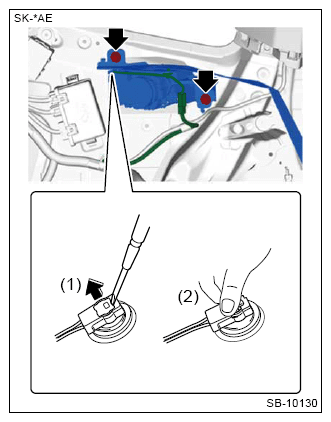

- Disconnect connector of the pretensioner.
- Short the alligator clip and terminal of the airbag deployment tool together.CAUTION: Short the airbag deployment tool terminals until just before the pretensioner operation process.
Preparation tool:
ST: AIRBAG DEPLOYMENT TOOL (98299PA030)
- Connect the airbag deployment tool (A) and test harness adapter D or test harness adapter F (B) to the connector for the gas generator on which to perform operation process.
Preparation tool:
ST: TEST HARNESS ADAPTER D (98299SA010)
Front pretensioner
Rear pretensioner
Adaptive force limiter
ST: TEST HARNESS ADAPTER F (98229SA050)
Lap pretensioner
- Connect the connector of test harness adapter D or test harness adapter F to the pretensioner or adaptive force limiter.NOTE: For RH side, remove the belt assembly rear OUT and then reinstall it to the vehicle body after connecting the test harness adapter D to it.
Tightening torque:
30 N.m (3.1 kgf-m, 22.1 ft-lb)
- Make sure there is no one inside the vehicle.
- Extend the wiring of the airbag deployment tool to its limit, and completely close all the windows and sunroof.
- Move the battery 5 m (16 ft) or more from the vehicle, and affix nearby.
- Connect the airbag deployment tool alligator clip to the battery negative (-) terminal.
- Connect the other cable of airbag deployment tool to the battery positive (+) terminal, and activate the pretensioner.CAUTION:
- After activation, the pretensioner will be extremely hot. Let it cool down for at least 40 minutes in an area with no one around.
- Do not expose the activated pretensioner to water.
- Remove the seat belt outer.
- Front: Ref. to SEAT BELT SYSTEM>Front Seat Belt>REMOVAL>BELT ASSEMBLY FRONT OUT .
- Rear: Ref. to SEAT BELT SYSTEM>Rear Seat Belt>REMOVAL .
- Cut the seat belt at a position as close as possible to the seat belt retractor.
- Cut the seat belt at a position as close as possible to the lap seat belt pretensioner.
- Place the activated pretensioner in a sealed vinyl bag, then discard.
