Belt Assembly Front Inn

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
Before installation, make sure that the correct part is used.
During installation, make sure that the seat belts are not twisted.
Check that there is no pinching of the seat belt harness. Wrong harness rooting may cause the harness short from pinch.
Do not forget the spring wave washer, when installing the belt assembly front INN.
If the passenger's seat is removed, be sure to perform [Rezeroing] for the occupant detection system after installing the seat to the vehicle. Ref. to OCCUPANT DETECTION (DIAGNOSTICS)>REZERO .
For model with door mirror interlocked seat position memory, initialize the power seat and remote control control module after installing the driver's seat in the vehicle if the seat has been removed. Ref. to SEATS>POWER SEAT SYSTEM>ADJUSTMENT .

Install the belt assembly front INN.

Install the wave washer, belt assembly front INN and nut in order and then tighten the nut.
Tightening torque:

38 N.m (3.9 kgf-m, 28.0 ft-lb)

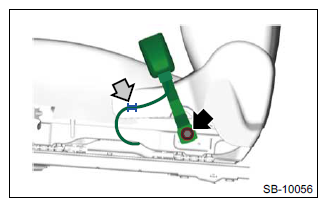

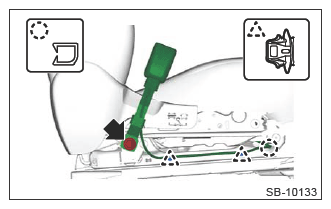

Locate the seat belt harness and retain it with a harness clip.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: For details about harness routing behind the seat, refer to "SEATS" service information. Ref. to SEATS>FRONT SEAT>ASSEMBLY>CONNECTOR & HARNESS .

Install the seat assembly to the body. Ref. to SEATS>FRONT SEAT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
