Bushing Arm Front

Before assembly, inspect the following items and replace any faulty part with a new one.
- Check the arm COMPL front for damage or cracks, and replace if defective.
- Visually check the bushing for abnormal cracks, fatigue or damage.
- Visually check the boot on the ball joint COMPL for damage.
Match the alignment marks on the gap of bushing intermediate plate for the bushing arm front and on the arm COMPL front.

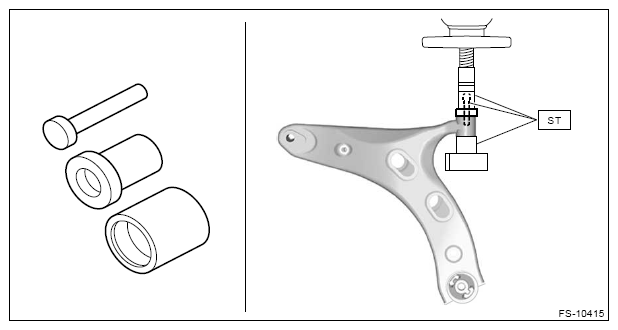

Using the ST and a press, install the bushing arm front.
Preparation tool:

ST: INSTALLER AND REMOVER SET (927680000)
