Bushing Rear Front Arm

  1. Put an alignment mark on arm COMPL front based on the center of recess portion of the busing rear front arm.

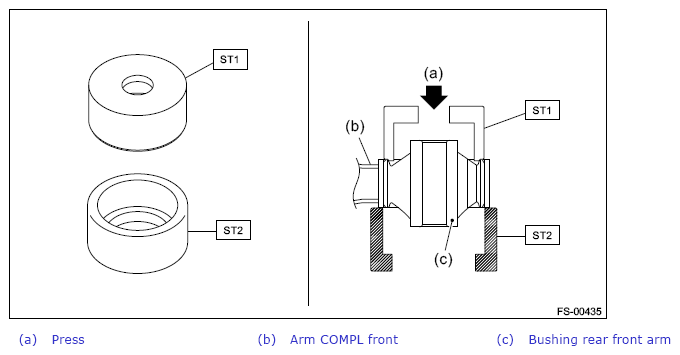

  2. Using the ST and a press, remove the busing rear front arm.

    Preparation tool:

    ST1: REMOVER (20299AG000)

    ST2: BASE (20299AG010)

    G13868531Courtesy of SUBARU OF AMERICA, INC.
