Front Arm: Removal

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the Cross Member support rear. Ref. to FRONT SUSPENSION>Cross Member Support>REMOVAL .
  3. Remove the arm COMPL front.
    CAUTION: Be careful not to damage the boot of the ball joint.

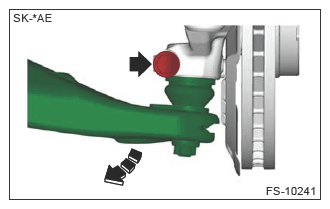

    1. Remove the bolt from the front axle housing.
    2. Lower the arm COMPL front, and remove the ball joint portion from the front axle housing.
      G13224963Courtesy of SUBARU OF AMERICA, INC.

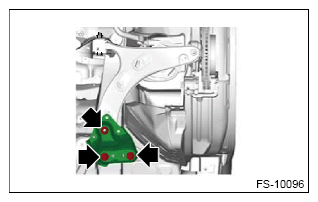

    3. Remove the front arm rear plate.
      G12400579Courtesy of SUBARU OF AMERICA, INC.

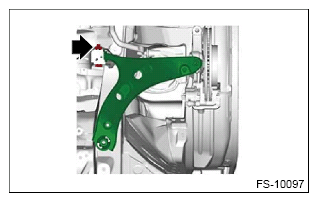

    4. Remove the arm COMPL front.
      G12400580Courtesy of SUBARU OF AMERICA, INC.
