Rear Alignment (Inspection Value)
| Suspension height (Tolerance: +12mm -24 mm (+0.47 in -0.94 in )) |
mm (in) | -73 (-2.87) |
| Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) | -0°50' | |
| Toe-in | mm (in) | IN3±3 (IN0.12±0.12) |
| Toe angle (sum of both wheels): IN0°15' ±15' | ||
| Thrust angle (tolerance: ±30' ) | 0°00' | |
NOTE:
- Adjust with the value less than the inspection value, taking aging variation into consideration.
- Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart.
- Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted.
- If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace them with new parts.

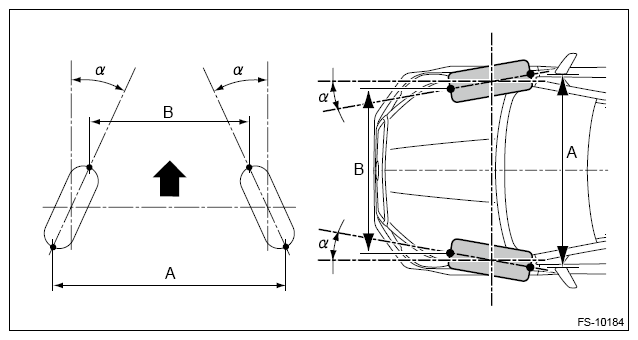

A - B = Positive: Toe-in, Negative: Toe-out
a = Individual toe angles
