Stabilizer Bushing

  1. Lift up the vehicle.
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

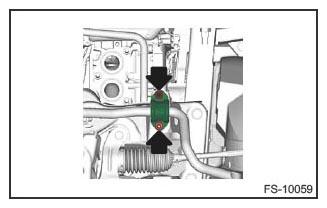

  3. Remove the clamp stabilizer on the left and right sides.
    G11253795Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bushing stabilizer front.
