Warning Light Illumination Pattern: Inspection
Courtesy of SUBARU OF AMERICA, INC.

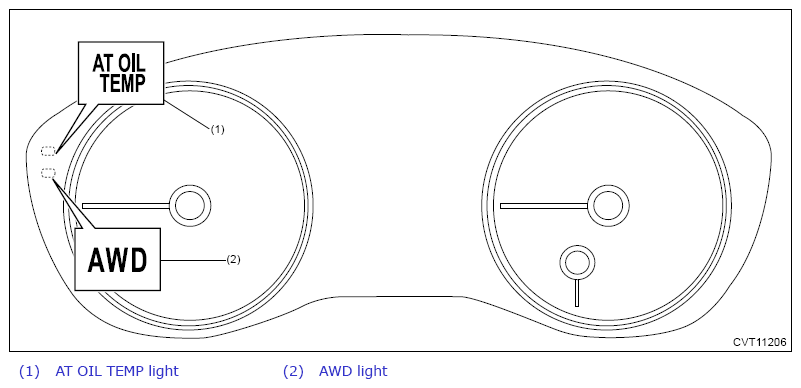

The AT OIL TEMP light illuminates or blinks, when the ATF temperature is high and malfunction occurs in CVT.
AWD light illuminates or blinks, when the AWD is in special control condition and AWD has malfunction.
Courtesy of SUBARU OF AMERICA, INC.
