CVTF Cooler (With Warmer Function): Assembly

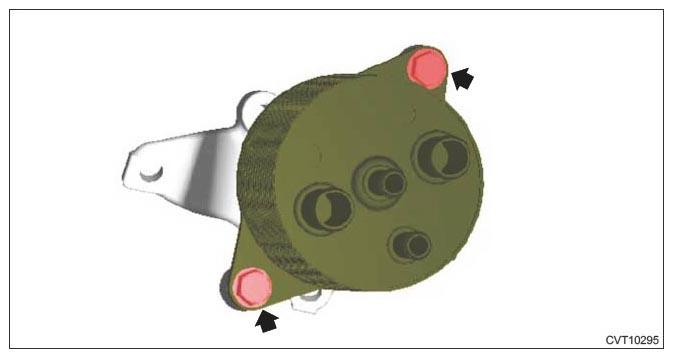

  1. Attach the bracket.

    Tightening torque:

    23 N.m (2.3 kgf-m, 17.0 ft-lb)

    G11255726Courtesy of SUBARU OF AMERICA, INC.
