CVTF Cooler (With Warmer Function): Removal

CAUTION: If CVTF and engine coolant spills over the engine, completely wipe it off to avoid emission of smoke and causing a fire.
  1. Disconnect the ground terminal from battery sensor, Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Drain engine coolant, Ref. to DRAINING OF ENGINE COOLANT .
  3. Remove the clip from the air intake boot, and loosen the clamp.
    G13223823Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13223824Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the CVTF cooler (with warmer feature).
    NOTE: Prepare the container for draining of engine oil.
    1. Disconnect the CVTF cooler inlet hose and CVTF cooler outlet hose.
      G13225625Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the water hose (inlet) (A) and water hose (outlet) (B).
      G13592119Courtesy of SUBARU OF AMERICA, INC.

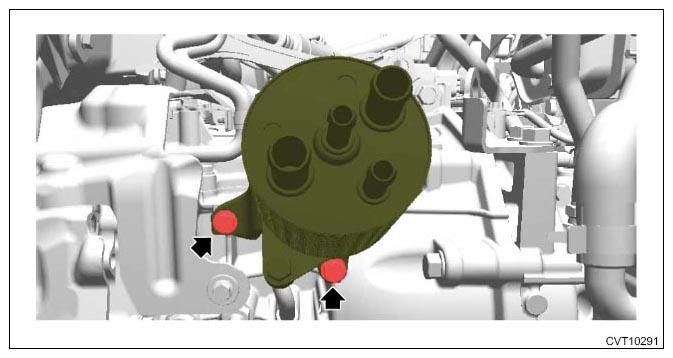

    3. Remove the CVTF cooler (with warmer feature).
      G11255719Courtesy of SUBARU OF AMERICA, INC.
    4. Remove the CVTF cooler inlet hose (A) and CVTF cooler outlet hose (B).
      G13225627Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the water hose (outlet).
    NOTE: Perform this procedure only when required.
    1. Remove the EGR cooler. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>EGR COOLER>REMOVAL .

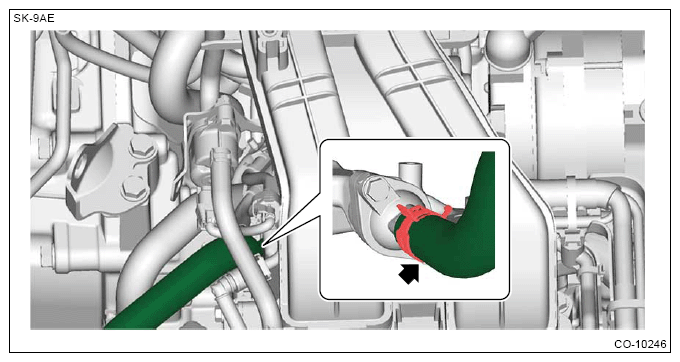

    2. Remove the water hose (outlet).
      G13224722Courtesy of SUBARU OF AMERICA, INC.
